VARIOUS BODY INSULATION PANELS

The car is fitted with insulating panels to reduce mechanical noise and insulate the passenger compartment against noise deriving from rolling and the external environment.

The luggage compartment base houses a spare wheel with tool kit. These are secured in a container which is fastened inside the rim by a device.

The spare wheel is covered by a sound-absorbent preformed cover. This is turn is covered by the carpet that lines the luggage compartment floor.

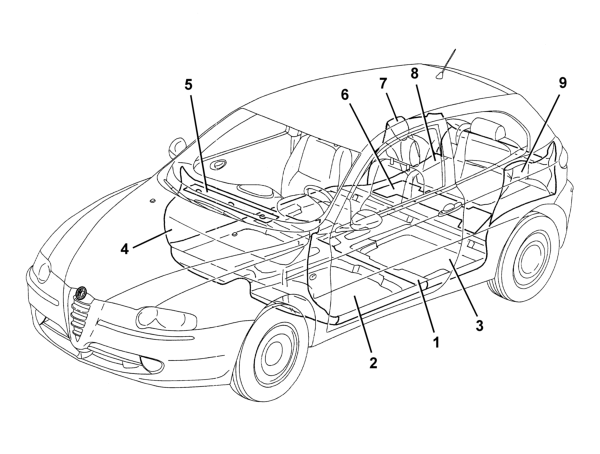

• 1 Floor carpet
• 2 Front footboard insulation
• 3 Rear footboard insulation
• 4 Front facia insulation
• 5 Upper facia insulation
• 6 Rear underseat insulation
• 7 Right side trim
• 8 Load platform
• 9 Left side trim

The insulation panels are made out of sound-absorbent material secured by bosses or bonded to the body.

View of assembly
