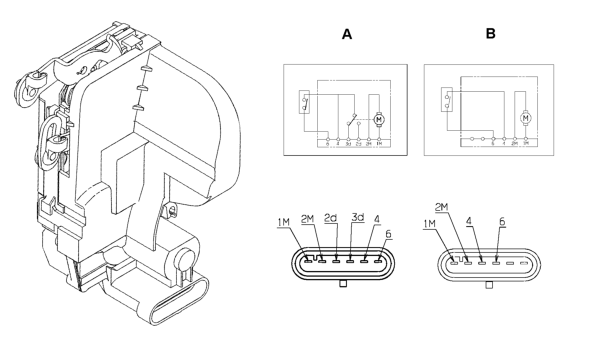

DOOR LOCK/RELEASE

• A - Front lock pin-out
• B -Rear lock pin-out (without microshunt)
• 1M - front insulated motor brush to facia control unit PIN 18 (communication on body computer)
• 2M - from insulated motor brush to facia control unit PIN 16 (communication on body computer)
• 2d from microshunt to body computer PIN 24
• 3d from microshunt to body computer PIN 34
• 4 earth
• 6 from microswitch to body computer PIN 35

The front door catches contain a microshunt and a microswitch fitted to the handles (exterior and interior). These are mechanically connected to the electric motors that operate door lock/release.

Lock control: position of microshunt contacts:

• from 4 - 2d was previously closed and now opens
• to 4 - 2d was previously open and now closes.

Release control: microshunt contact position:

• from 4 - 3d was previously closed and now opens
• to 4 - 2d was previously open and now closes.

Door open indicator microswitch on control panel: microswitch contact position:

• 1st click door open contacts 6 - 4 closed,
• 2nd click door closed contacts 6 - 4 open.
