Bonnet

Operation 7210E20 · External parts

Removal

Open the bonnet lid.

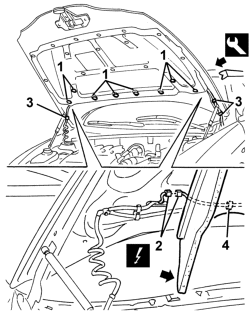

1 Using the special tool, release the sound insulation lining retaining buttons shown.

Special tool 1.823.015.000 – Blade 1

2 Lift the sound insulation lining slightly and disconnect the heated windscreen washer jet electrical connections (2a, 2b).

Component O50 Left windscreen washer defrosting resistance 2a

Component O51 Right windscreen washer defrosting resistance 2b

3 Cut the pipe and wiring retaining collars.

4 Disconnect the wiring retainers from the collar.

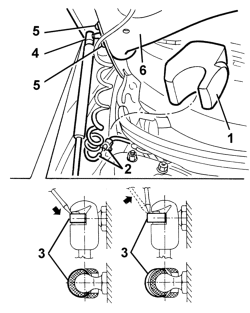

1 Remove the right sound-proofing

2 Disconnect the washer pipe connection.

3 Support the bonnet lid and, using a screwdriver, prise off (without detaching) the lift device upper retaining clips.

4 Disconnect the top retaining end of the lift devices.

5 Undo the hinge bolts.

6 Remove the bonnet.

Refitting

Check that the bonnet and hinges are undamaged.

Fit the bonnet.

Screw in the hinge bolts without tightening them.

Connect the top retaining ends of the lift devices and fit the retaining clips.

Connect the washer pipe connector.

Fit the sound-proofing in its seat.

Connect the wiring retainers to the cover

Apply the retaining collars to the pipe and wiring.

Slightly raise the sound-proofing trim and connect the hot washer jet electrical connections.

Fit the soundproofing trim and do up the retaining buttons.

See Op. 7025A10 Bonnet lid - square .
