Asr disengagement switch - r r

Operation 3350A10 · Anti - spin regulation devices

Removal

Ensure that the ignition key is in the stop position, then disconnect the battery negative terminal.

Component A1B Battery

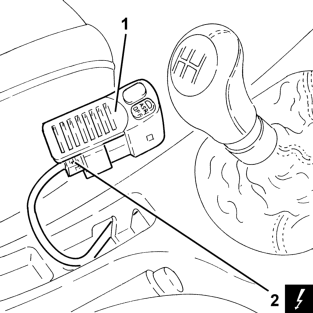

1 Remove from its seating on the centre console the embellishment with switch for switching off the A.S.R. drive control.

2 Disconnect the electrical connection from the switch for switching off the A.S.R. drive control.

Component H35 Switches on tunnel 2

Remove the embellishment complete with switch for switching off the A.S.R. drive control.

Refitting

Connect the electrical connection to the switch for switching off the A.S.R. drive control.

Refit in its seating on the centre console the embellishment complete with switch for switching off the A.S.R. drive control.

Connect the battery terminal (-).
