Clutch - r + r with gearbox removed

Operation 1810A24 · Clutch mechanism

Removal

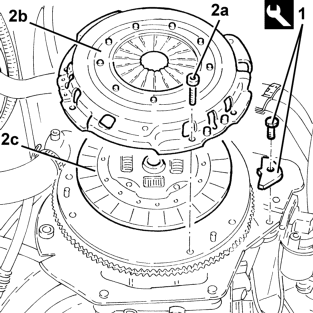

1 Fit the flywheel lock.

Special tool 1.860.161.001 – Counter-torque 1

2 Undo the bolts 2a and remove the clutch drip tray 2b and the clutch disc 2c.

Refitting

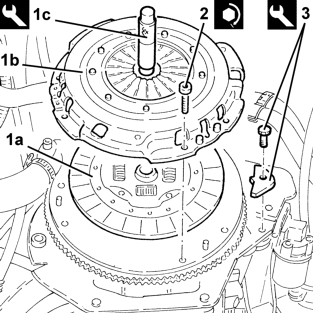

1 Place the clutch disc 1a and the clutch drip tray 1b back in its housing using the tool 1c for centering.

Special tool 1.870.447.001 – Centering 1c

2 Tighten the bolts fixing the clutch drip tray to the recommended torque.

Bolt M8 – Clutch assembly 2: (Engine flywheel side) 2.5 ÷ 3.1 daNm

3 Remove the flywheel lock.

Special tool 1.860.161.001 – Counter-torque 3
