Canister

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Emission control system › Canister

Engine (1.6 and 2.0 Twin Spark)Canister

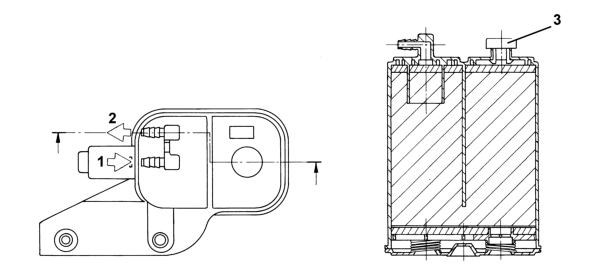

Canister

• 1 From the multi-function valve
• 2 To the solenoid valve
• 3 One-way scrubbing valve

Mounted in the front right wheelarch, this consists of an activated-charcoal filter element which absorbs the fuel vapours coming from the separator.

A one-way valve allows external (scrubbing) air to enter during vapour intake.

04 Engine
