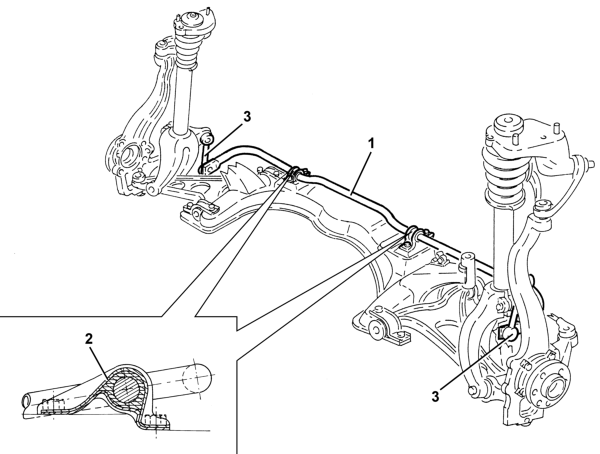

Stabilizer bar and anchorage struts – specifications:

• 1 Front anti-roll bar
• 2 Mountings
• 3 Anchorage links

VIEW OF ASSEMBLY

The anti-roll bar or torsion bar, of tubular section for reduced weight, is anchored to the chassis by means of flexible blocks contained in approriate mountings, and to the shock absorber forks by means of two links with ball joints. The action of

the torsion bar reduces rolling on bends, minimizing changes in the characteristic angles of the suspension. If the movement of the suspension arm is symmetrical on both sides, the torsion bar does not affect the stiffness of the suspension, as it

acts only if asymmetrical movements between the two arms of a single axle are created.
