Alfa Romeo 155 Factory Service Manual (1992-1998)52 · Axle shafts
52 · General

Disassembly of joint on gearbox side

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Constant speed joints › Disassembly of joint on gearbox side
Axle shaftsDisassembly of joint on gearbox side

DISASSEMBLY OF JOINT ON GEARBOX SIDE

  1. Remove the snap ring.
  2. Remove the bellows retaining clamps.
  3. Slide the constant speed joint off the axle shaft.
  4. Pull off the protective boot.

WARNING: Substitute the boot and clamps when re-fitting.

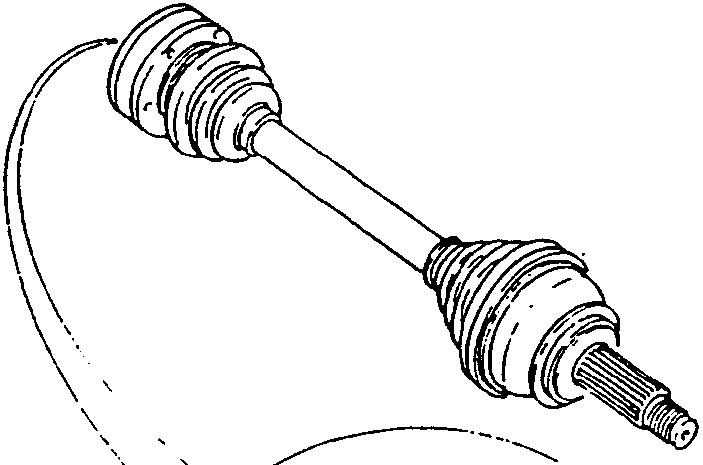

Constant Speed Joint Assembly

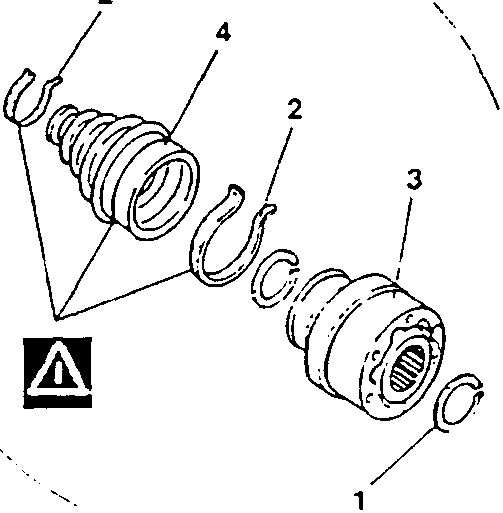

Disassembled Constant Speed Joint Components with Warning Symbol
  1. Part 3
  2. Part 4

DISASSEMBLY OF JOINT ON WHEEL SIDE

Lock the axle shaft in a vice and proceed as follows:

  1. Remove the clamp securing the protective boot.

WARNING: Substitute the boot and clamps when re-fitting.

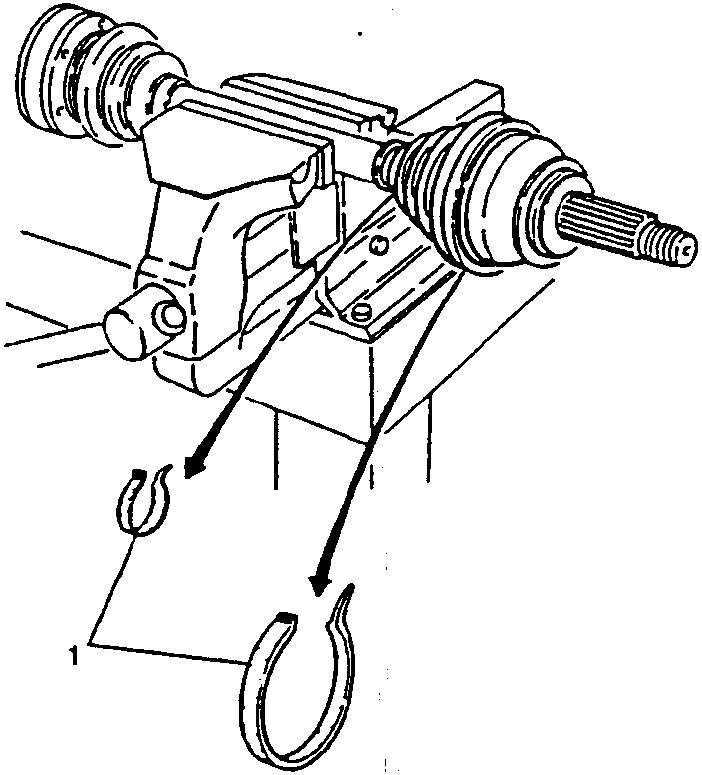

Joint on Wheel Side with Clamps Removed
  1. Remove the snap ring.
  2. Using tools No. 1.821.165.000 and No. 1.821.161.000, remove the constant speed joint from the axle shaft.

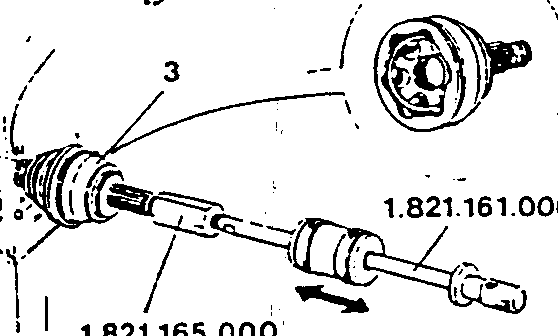

Tools Used for Removing Constant Speed Joint
