Removal and refitting

REMOVAL AND REFITTING

• Working from the right-hand side of the vehicle, operate as follows:

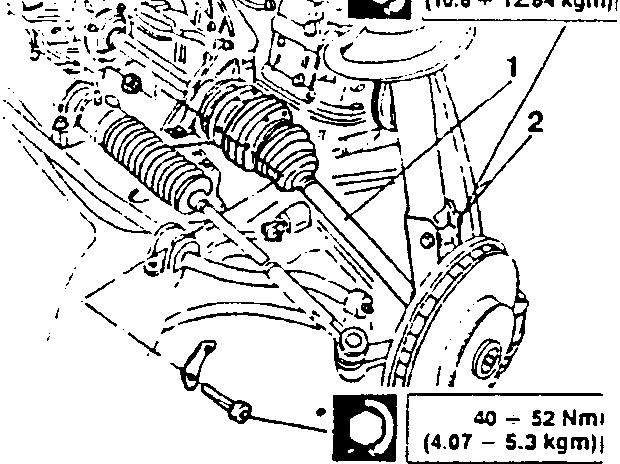

1. Unscrew the six bolts and disconnect the left-hand constant speed joint from the differential flange. Remove the safety plates.
2. Loosen the two bolts securing the wheel support to the suspension strut and remove the upper bolt.

104 ÷ 126 Nm
10.6 ÷ 12.84 kgm

40 ÷ 52 Nm
4.07 ÷ 5.3 kgm

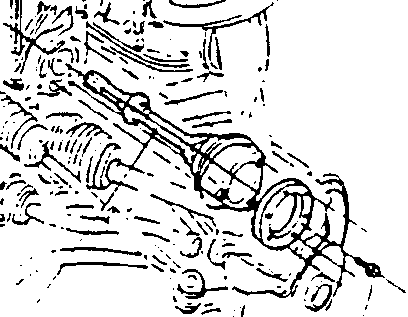

1. Loosen the screws securing the flange of the intermediate shaft to the engine support and withdraw the shaft from the differential.

Refit by reversing the procedure followed for removal and tighten the previously removed screws and nuts to the correct torque.
