Positioning

Positioning

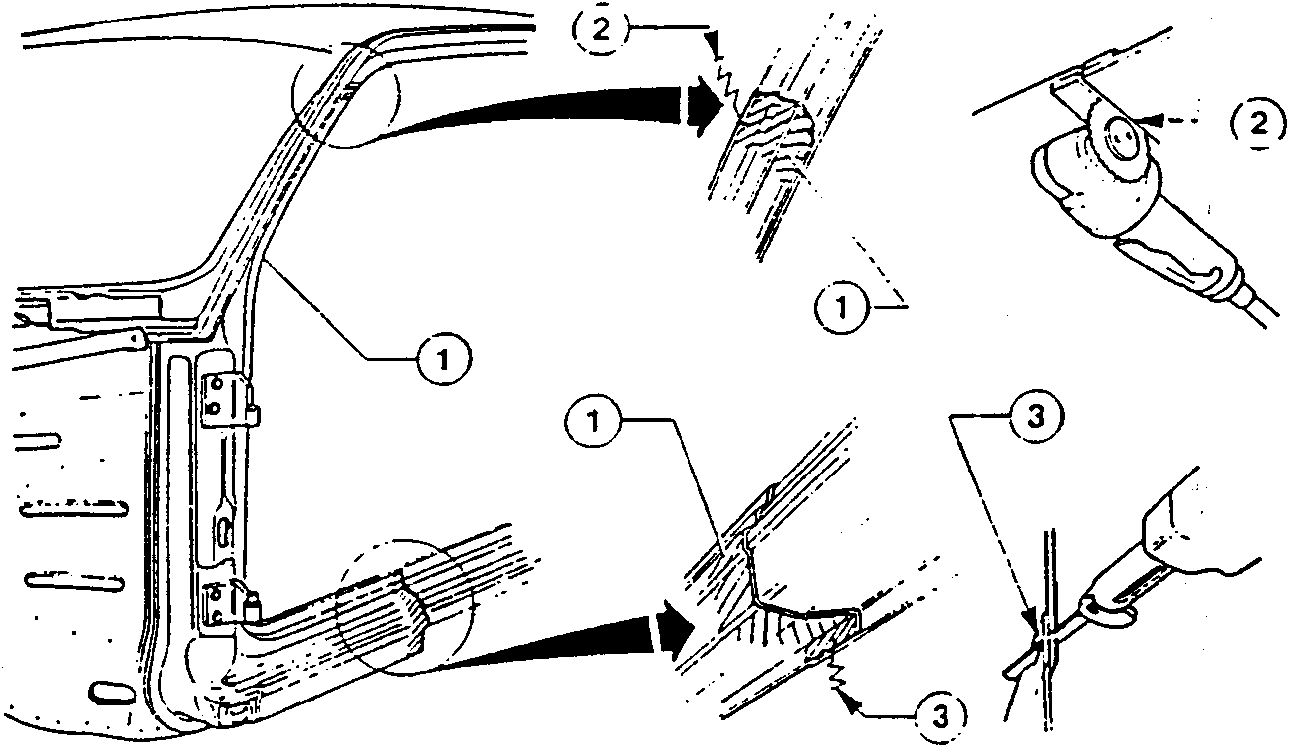

1. Position the pillar as indicated in the illustration and secure and mate the edges.
2. Check parallelism, gaps and angles (this necessitates the installation of the mobile components which were previously removed along with the gaskets and parts which, when installed, will make it possible to check the success of the operations) - (see: GR. 55 - FRONT DOORS).
3. Using a circular saw trim the sheet metal and remove the excess parts indicated in the illustration without damaging the windscreen frame.
4. Using a jig saw trim the sheet metal removing the excess parts as indicated in the illustration without damaging the underlying parts.

1. part name
2. part name
3. part name
