BodyworkChecks

Checks

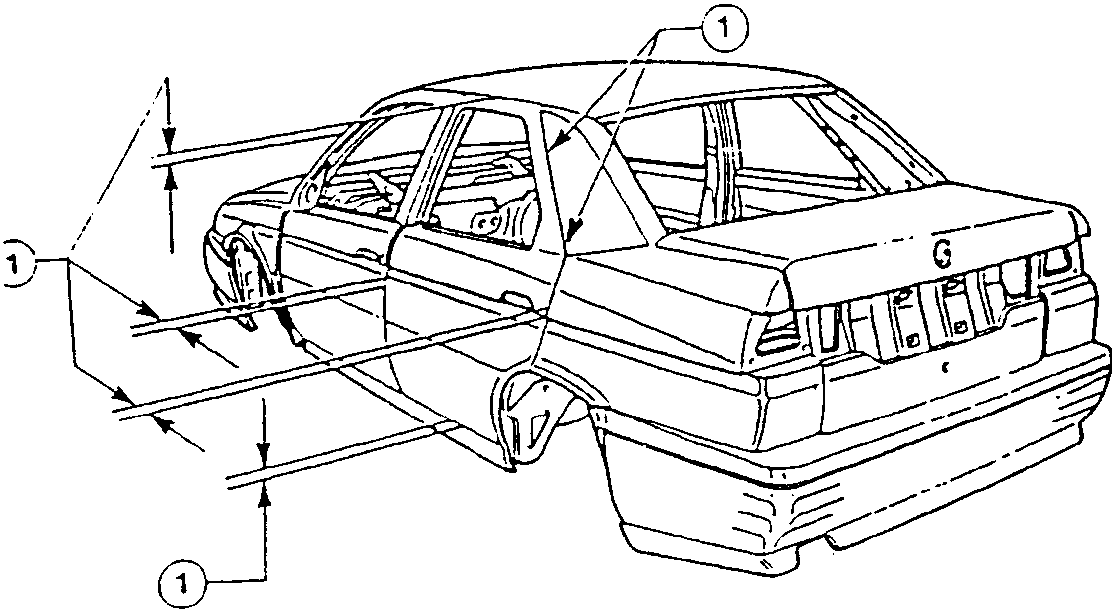

  1. Check parallelism, gaps and angles (this necessitates the installation of the mobile components which were previously removed along with the gas-kets and parts which, when installed, will make it possible to check the success of the operations) - (see. REAR WING).
Car bodywork diagram showing alignment checks

Protection

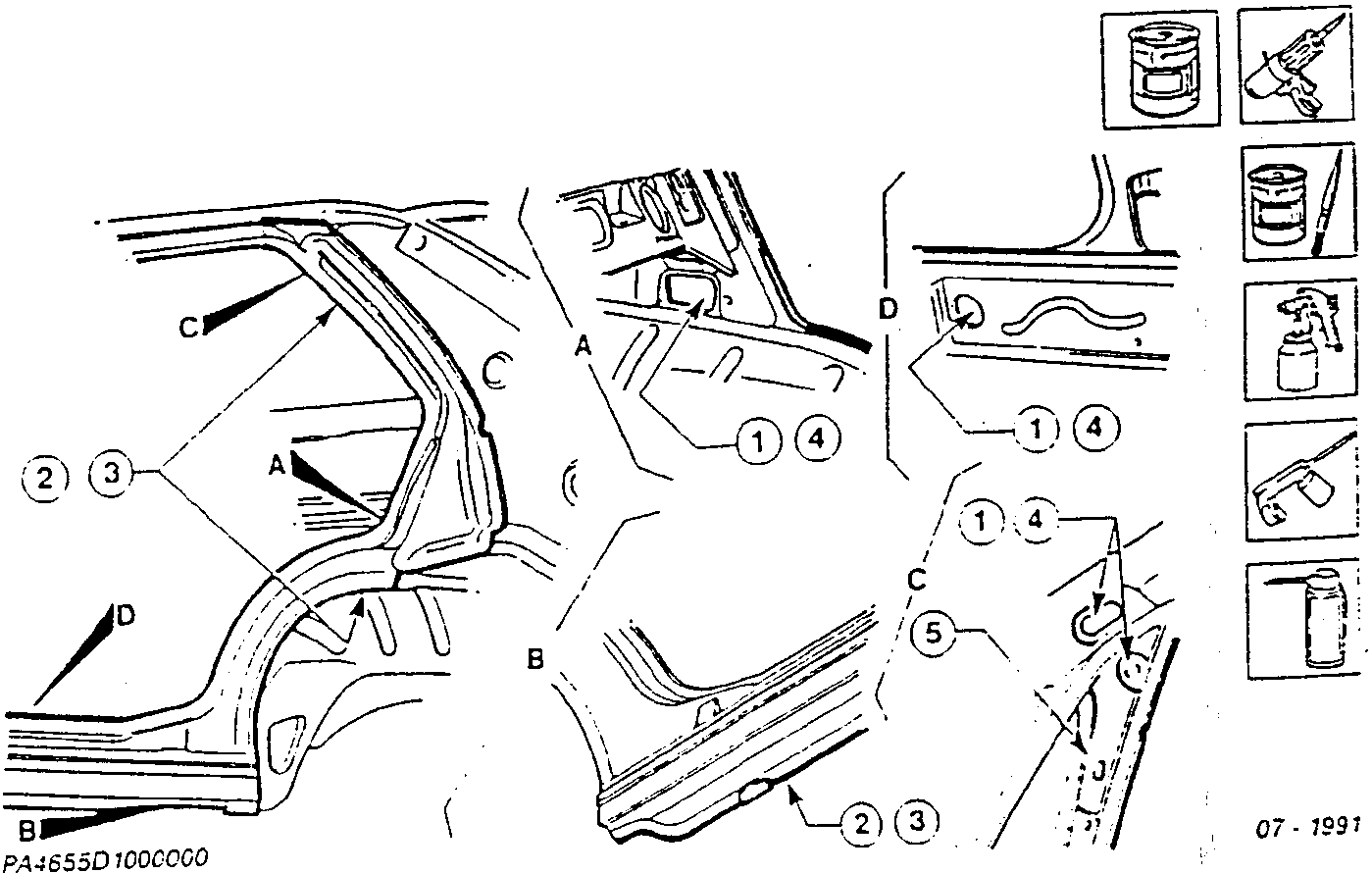

  1. Apply Type B protection to the areas shown in the illustration.
  2. Apply Type B rust-proofing to the areas shown in the illustration.
Detailed bodywork protection diagram with labeled parts and tools
  1. Apply Type A sealant to the areas shown in the illustration.
    - Proceed to the painting phase.
  2. Proceed to the waxing phase.
  3. Proceed to the foam treatment phase.
