Removal
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section

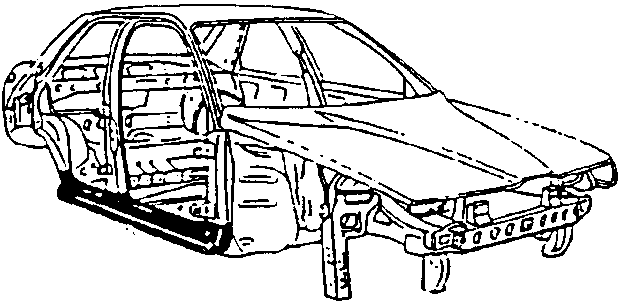

- Door sill rail › Removal
BodyworkRemoval
In order to facilitate the successive operations, the following components should be removed temporarily:
- rear and front doors (see: GR. 55);
- central pillar and seat belt trim (see: GR. 66);
- roof, seats and internal trim (see: GR. 66);
- front and rear wings (see: GR. 49).
- Disconnect the battery and the control units (see: GR. 40-43).
Removal

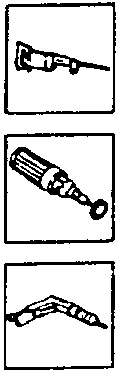

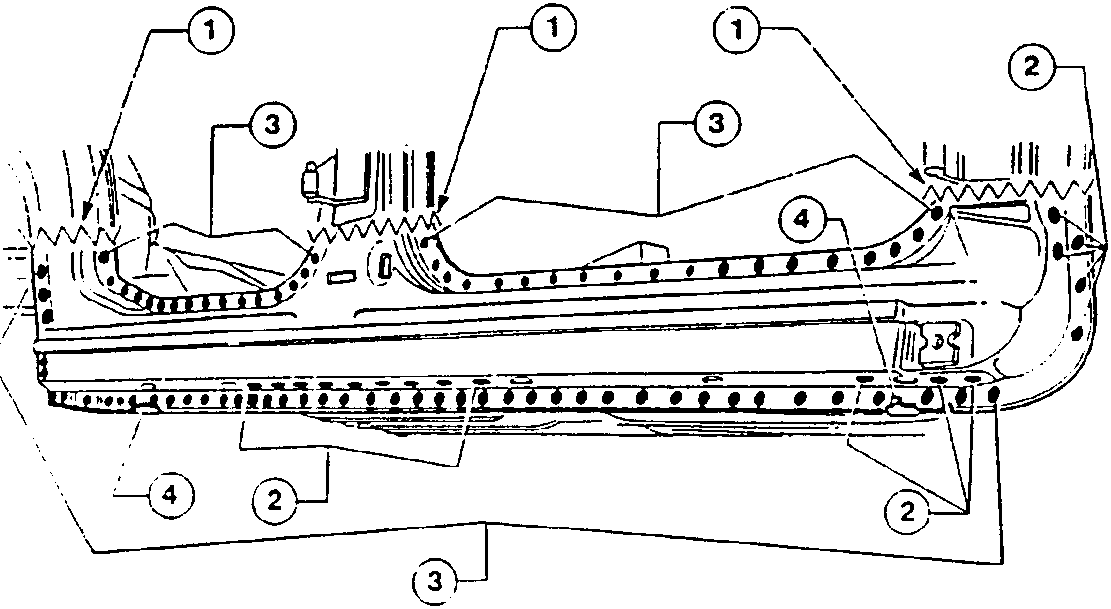

- Using a jig saw cut along the lines shown in the illustration without damaging the underlying parts.
- Using a rotating brush clean the area to be chamfered in order to show up the welds.
- Remove the welds with a drill.
- Remove the welds with a chamfering machine.
- Open the clinch tabs.
