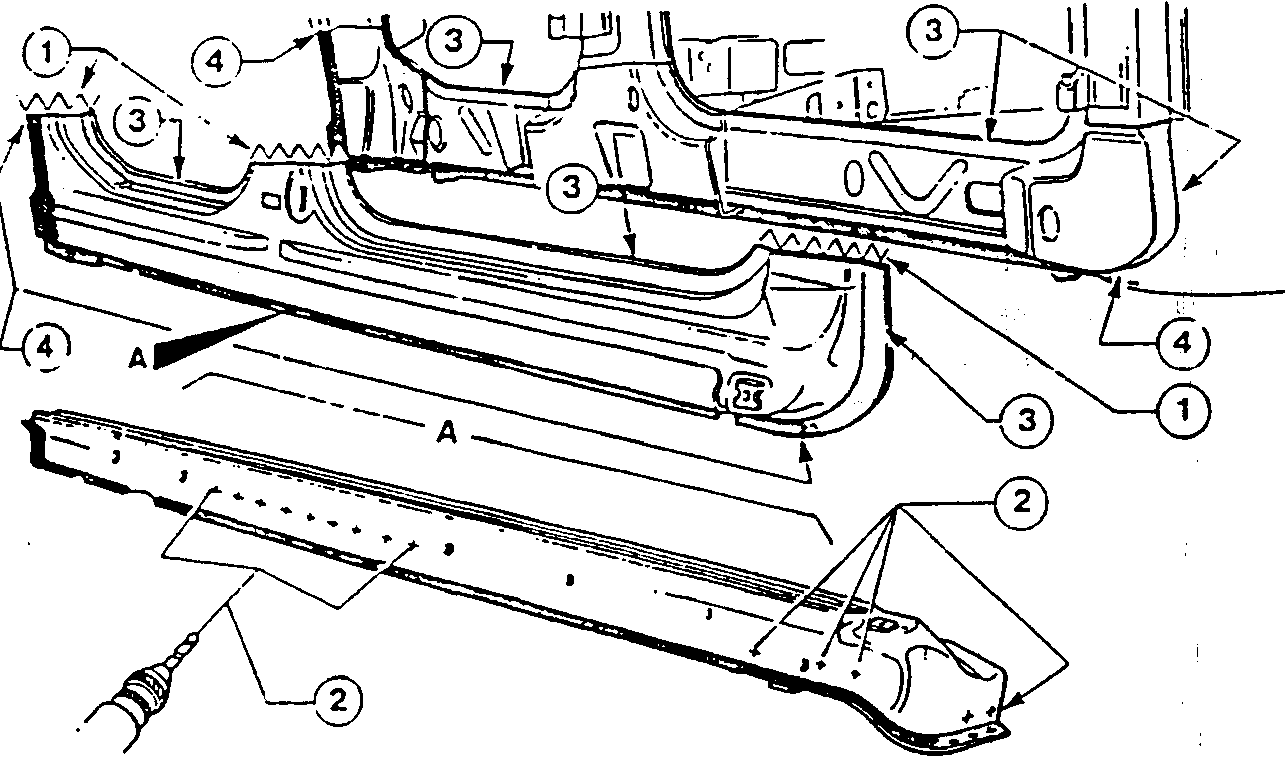

Positioning

1. Operating on a bench, cut the new door sill with a jig saw remembering to leave enough marin for overlapping.
2. Trace the trim and using a 5 mm. bit, drill as indicated in the illustration.

• Clean the welding areas using a rotating brush.
• Spread the areas indicated in the illustration with Type B electroweldable protection.
• Spread the areas indicated in the illustration with Type A electroweldable paste.

1. Part 1
2. Part 2
3. Part 3
4. Part 4

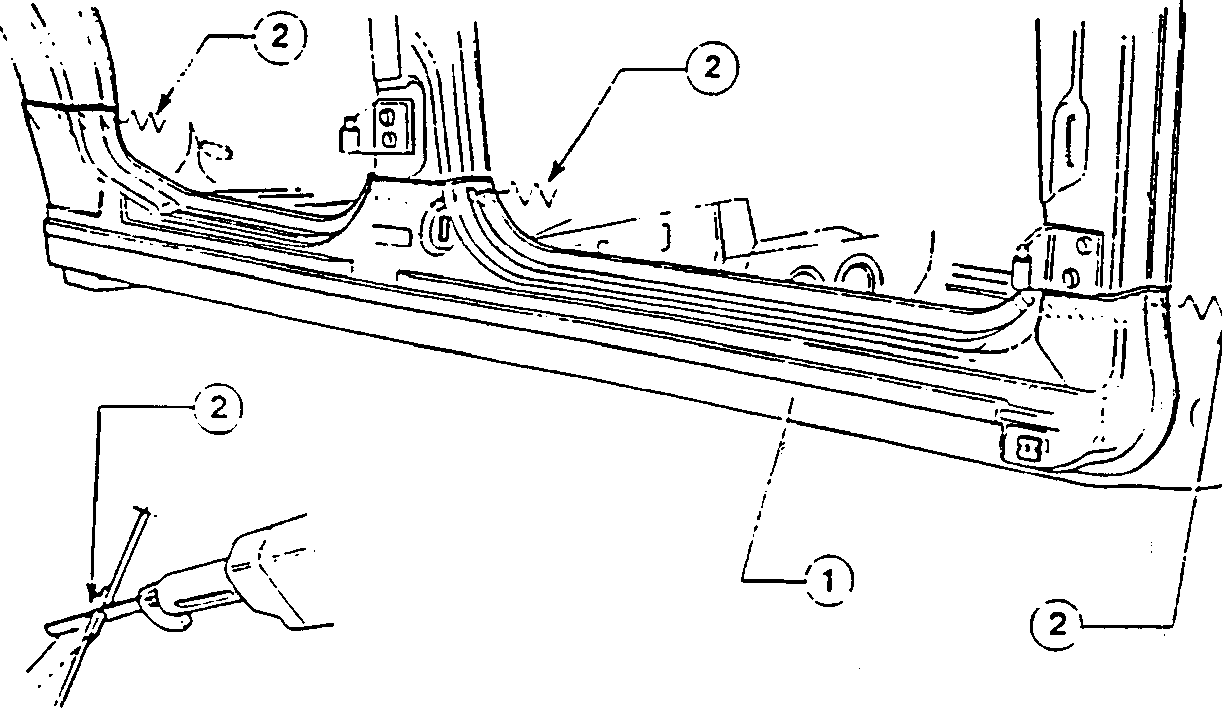

Positioning

1. Position the sill and overlap as indicated in the illustration.
2. Using a jig saw, trim the sheet metal and remove the excess parts without damaging the underlying parts.

1. Part 1
2. Part 2
