Removal

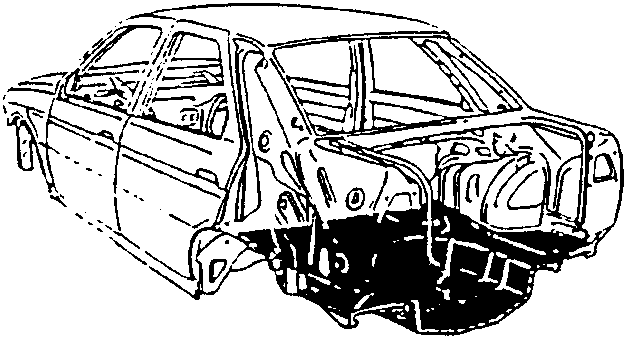

In order to facilitate the successive operations, the following components should be removed temporarily:

• rear bumper and external trim (see: GR. 75);
• boot lid (see: GR. 56);
• rear wings (see: GR. 49 - REPLACING MOBILE PARTS);
• luggage compartment trim (see: GR. 66);
• rear windscreen (see: GR. 75).

• Disconnect the battery and control units (see: GR. 40-43).

Removal

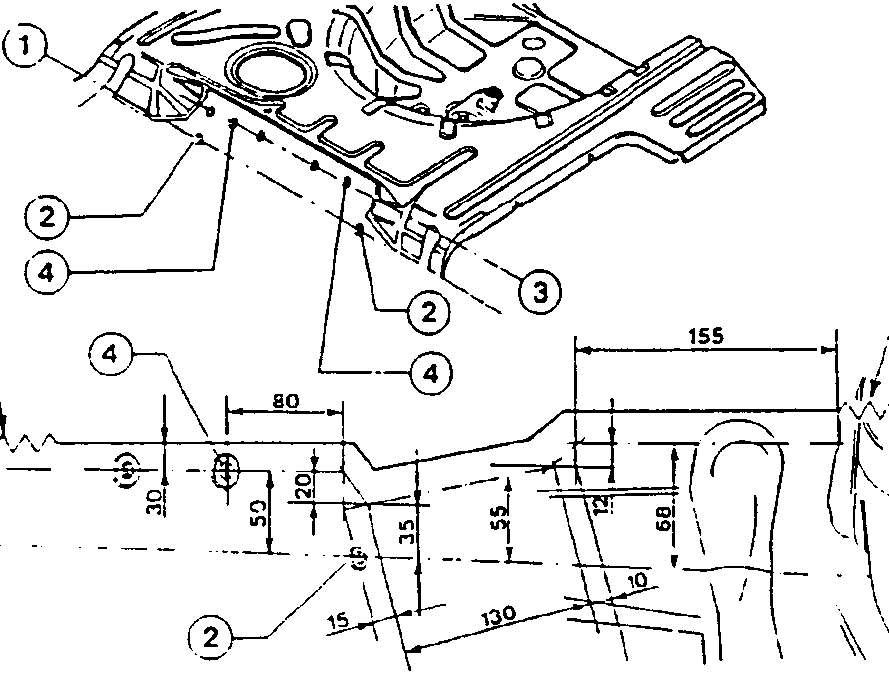

Following the measurements indicated, trace out the lines shown in the following illustration and description onto the area of the floor panel to be cut.

1. Trace out the axis through the holes (2).
2. Mark the reference holes for the axis (1).

3. Trace out the axis through the holes (4) adhering to the measurements given.
4. Mark the reference holes for the axis (3).
5. Using circular and jig saws cut along the indicated line.
