Partial rear floor panel
BodyworkRemoval · page 2 of 2
  1. Using a jig saw cut along the lines indicated in the illustration as far as the intersection with the line which was previously cut.
  2. Using a jig saw cut along the lines shown in the illustration.
  • Using a rotating brush, clean the area to be chamfered in order to show up the welds.
  1. Remove the welds with a drill.
  2. Remove the welds with a chamfering machine.

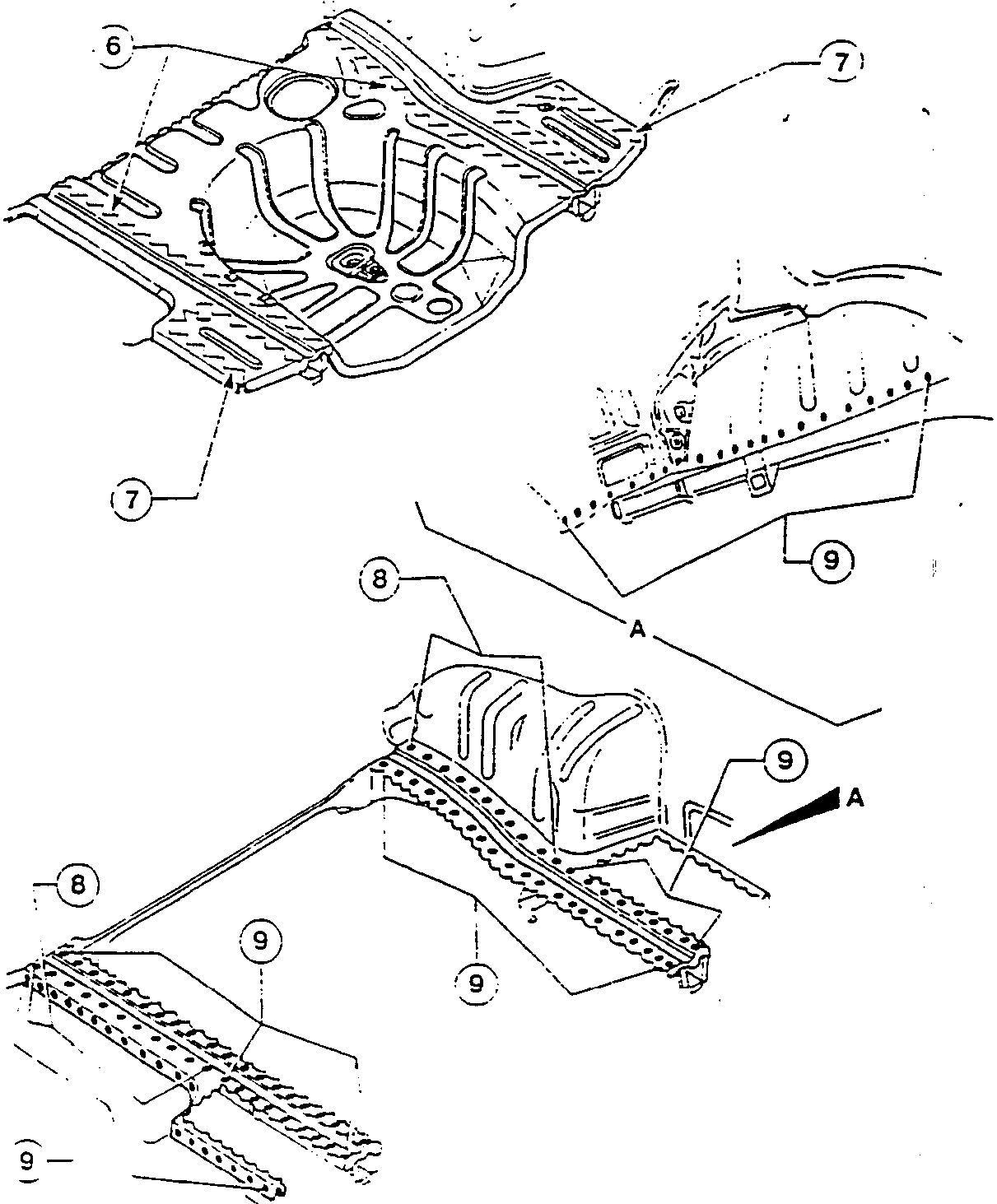

Illustration showing metal parts with cut lines and welds, labeled 6, 7, 8, and 9.
Four small illustrations showing tools: a chisel, a drill bit, a chiseling tool, and a chamfering machine.
