• Operating on a bench, trace out the new floor as indicated below:

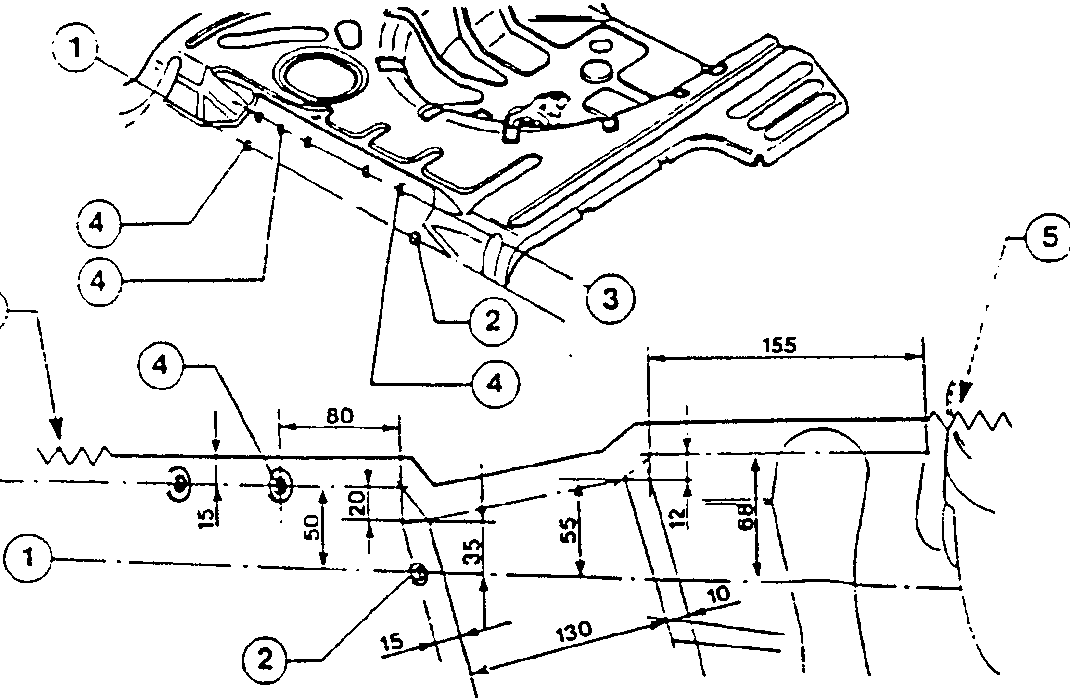

1. Trace out the axis through the holes (2).
2. Mark the reference holes for the axis (1).
3. Trace out the axis through the holes (4) adhering to the measurements indicated.
4. Mark the reference holes for the axis (3).

5. Using a jig saw, cut along the lines shown, leaving a margin of about 15 mm to permit overlapping.

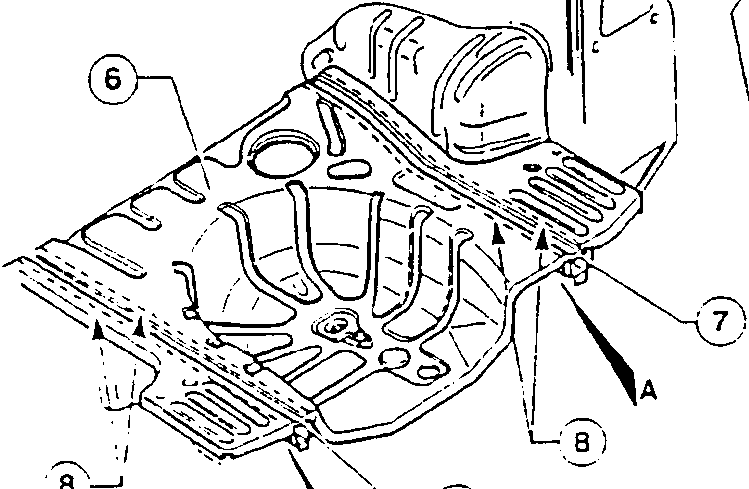

6. Position the new floor on the vehicle.
7. Check the correct positioning of the floor against the door sill rails as indicated.

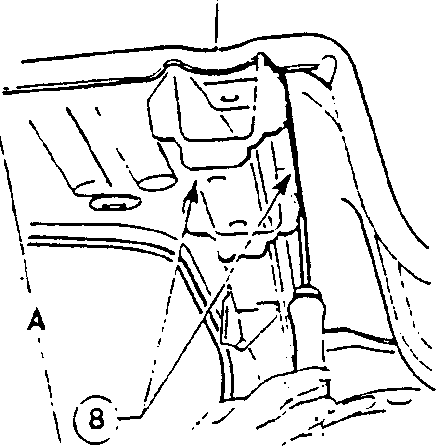

8. Using a surface gauge, trace out the lower part of the floor using the edges of the door sill rails as a guide.
