BodyworkWelding and finishing the sheet metal · page 1 of 2

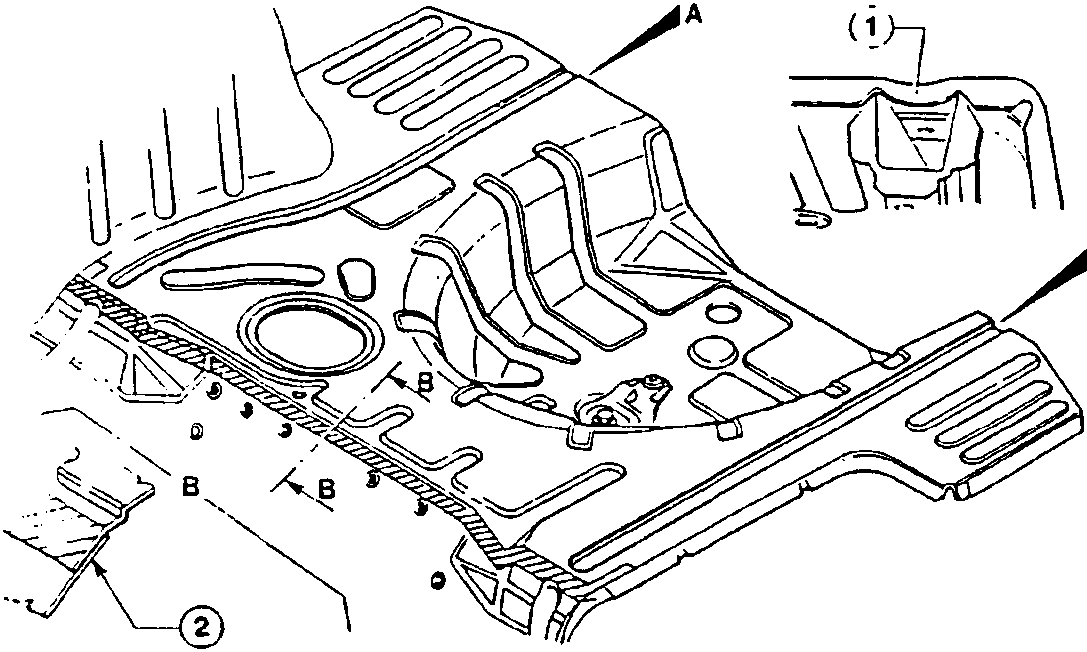

  • Position the floor on the vehicle.
  1. Check that the rear edge of the floor is correctly positioned against the door sill rail.
  2. Secure the components to be welded, mating the edges and checking the alignment.
Diagram showing floor positioning with labeled parts A, B, and numbered callouts (1) and (2).

Welding and finishing the sheet metal

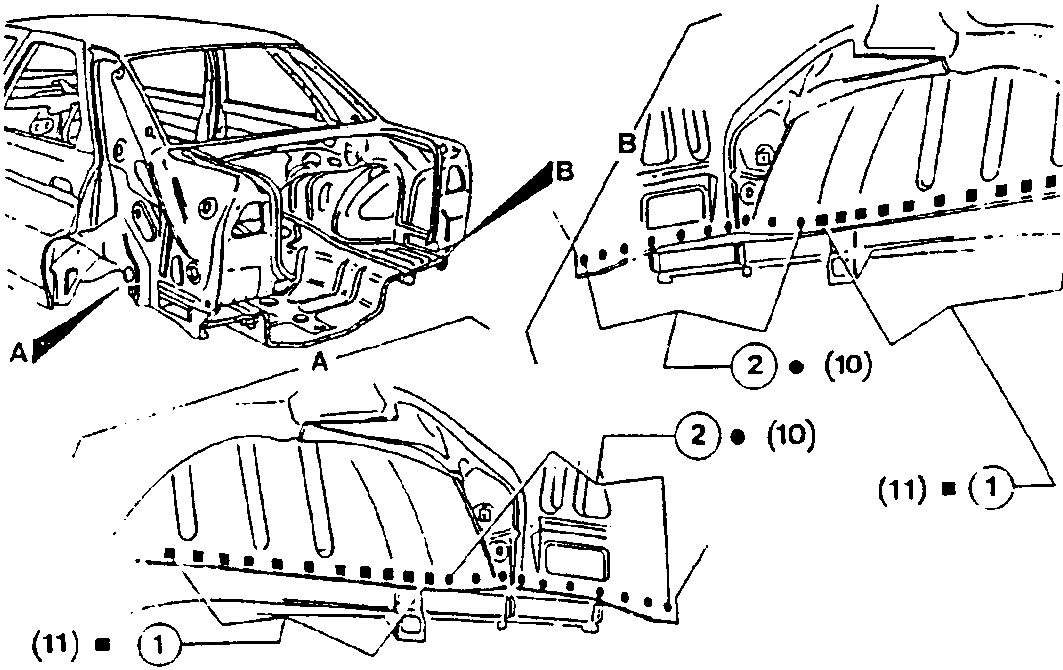

  1. Carry out filling welding using a MIG welder.
  2. Using a spot welder, operate as indicated in the illustration.
Diagram showing welding points on vehicle body with labeled parts A, B, and numbered callouts (1), (2), (10), and (11).
