Preparation and Positioning › Positioning
BodyworkPositioning
  • Using a rotating brush, clean the areas to be welded.
  1. Prepare the holes on the bracket for MIG welding.

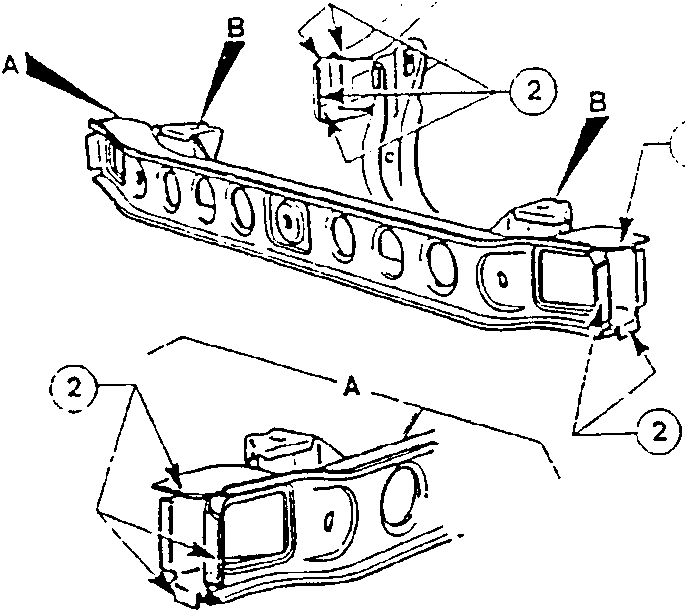

Illustration showing bracket with holes and weld points marked A and B
  1. Spread the areas indicated in the illustration with Type A electroweldable protection.
Tools for applying electroweldable protection
Bracket with mounting points marked 1 and B

Positioning

  1. Using a jig, correctly position the part, secure it and mate the edges of the side panel to the new cross member.

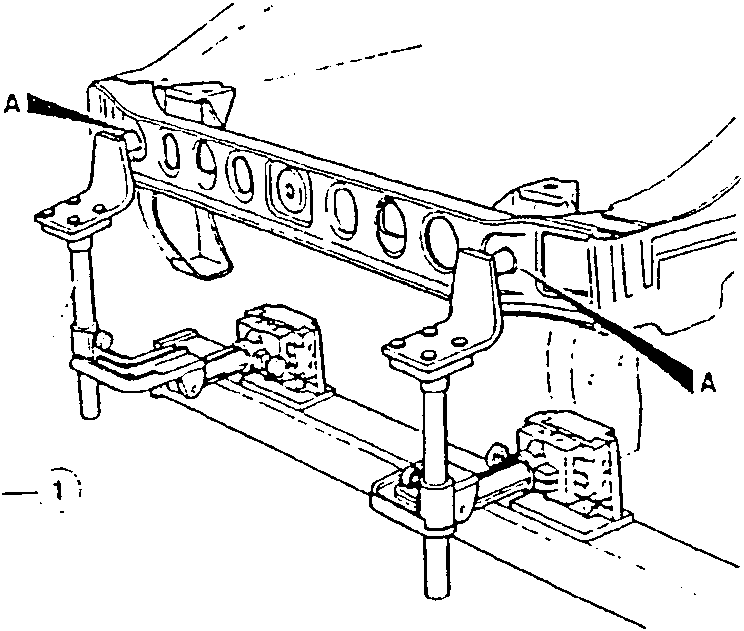

Side panel mounted on jig with cross member
Alignment arrows for positioning

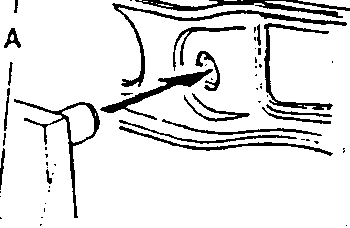

Close-up of mounting point A
