Welding and finishing of the sheet metal › Protection
BodyworkProtection
  1. Using a MIG welder carry out filling welds.
  2. Using a spot welder, operate as indicated in the illustration.
  • Position the brackets as indicated in the illustration, using the outer face of the side panel, the central hole in the brackets securing the bumper, and the centre of the vehicle as reference points.
  • Using an abrasive grinding machine, remove and level the residues left by welding.
  • Using a rotating brush, clean the welded areas.
  • Check that the components are correctly positioned after welding.
Illustration showing bracket positioning with reference points

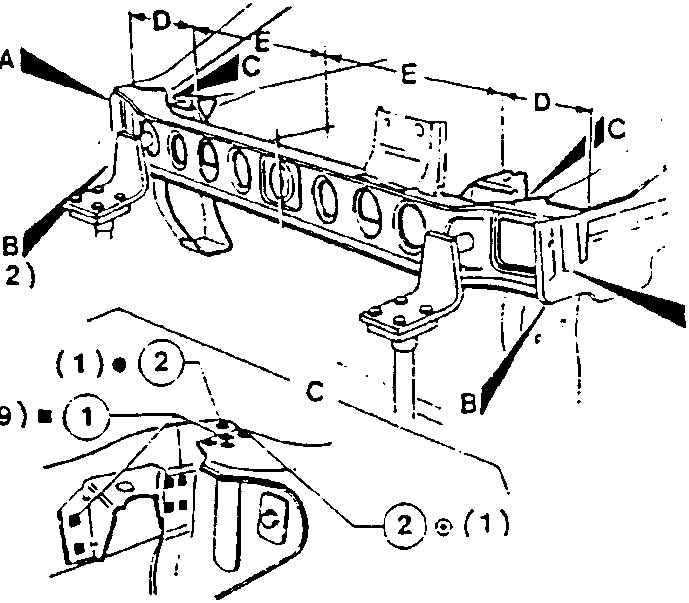

Illustration showing bumper bracket assembly with dimensions D and E
Illustration of spot welder tool
Illustration of rotating brush tool

D = mm 155

E = mm 355

Protection

  1. Spread Type B rust-proofing inside the cross member as shown in the illustration.
  2. Spread the areas shown in the illustration with Type A rust-proofing.

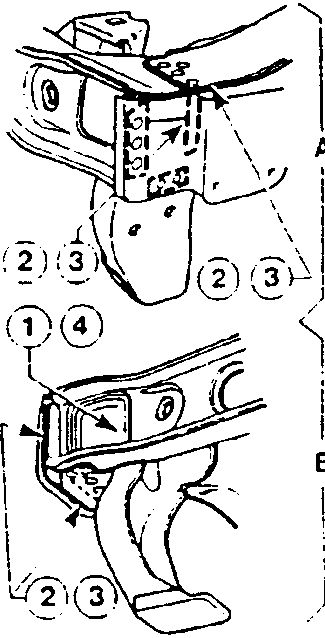

Illustration showing application of Type B and Type A rust-proofing

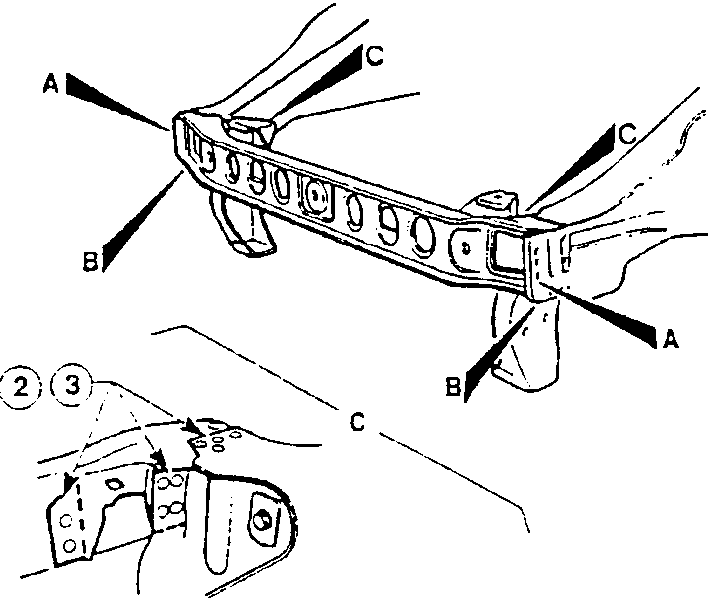

Illustration showing application of Type A sealant

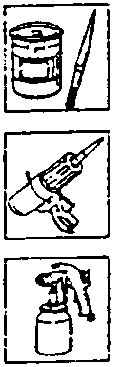

Illustration of sealant application tools
  1. Apply Type A sealant to the areas shown in the illustration.
  • Proceed to the painting phase.
  1. Proceed to the waxing phase.
