Side console › Removal
BodyworkRemoval

In order to facilitate the successive operations the following components should be removed temporarily:

  • front bumper and external trim (see: GR. 75);
  • front headlight assemblies (see: GR. 40);
  • engine cooling radiator (see: REPAIR MANUAL - ENGINES - GR. 07);
  • headlight support frame;
  • air conditioning system components if present (see: GR. 80).

Disconnect the battery and the control units (see: GR. 40-43).

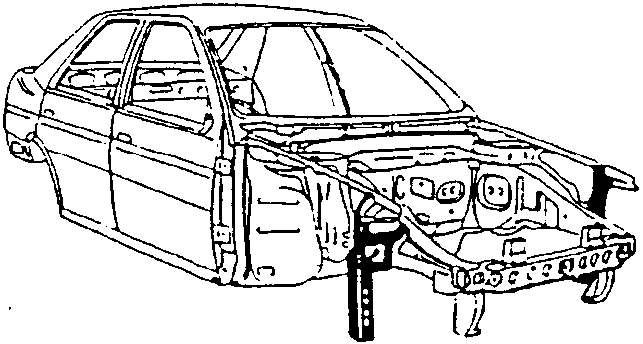

Car body with side console area exposed

Removal

Using a rotating brush, clean the area to be chamfered in order to show up the welds.

  1. Using a chamfering machine remove the welds indicated.

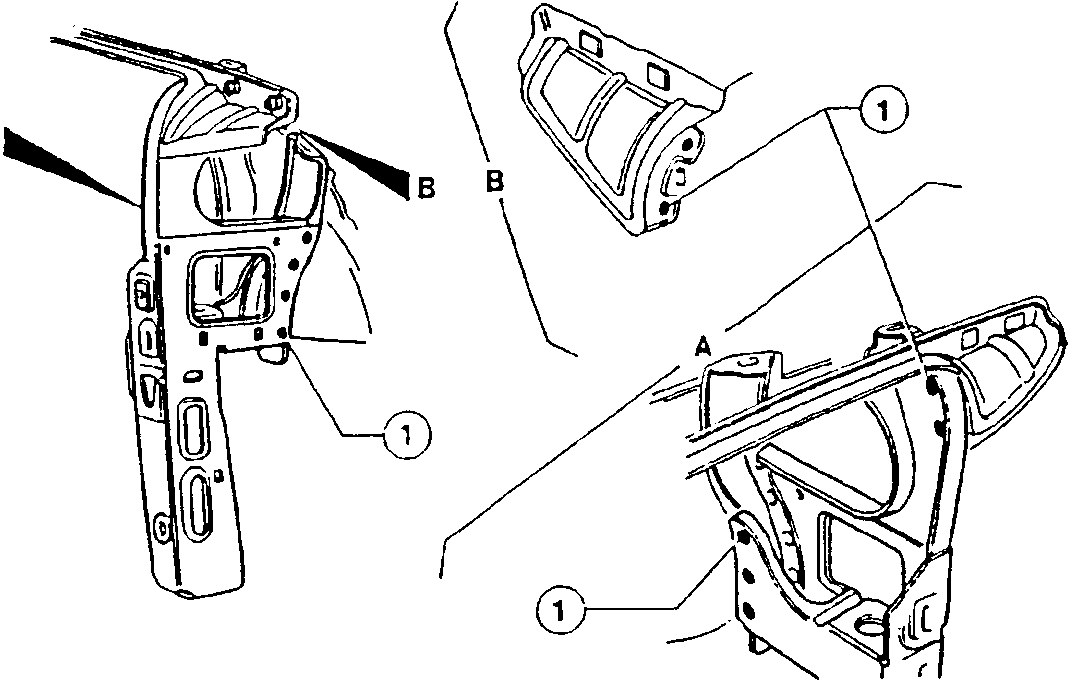

Side console assembly with labeled parts A and B
Chamfering tool for side console removal
