Welding position and finishing of sheet metal › Preparation
BodyworkPreparation

Preparation

  • Using a rotating brush clean the welding areas.

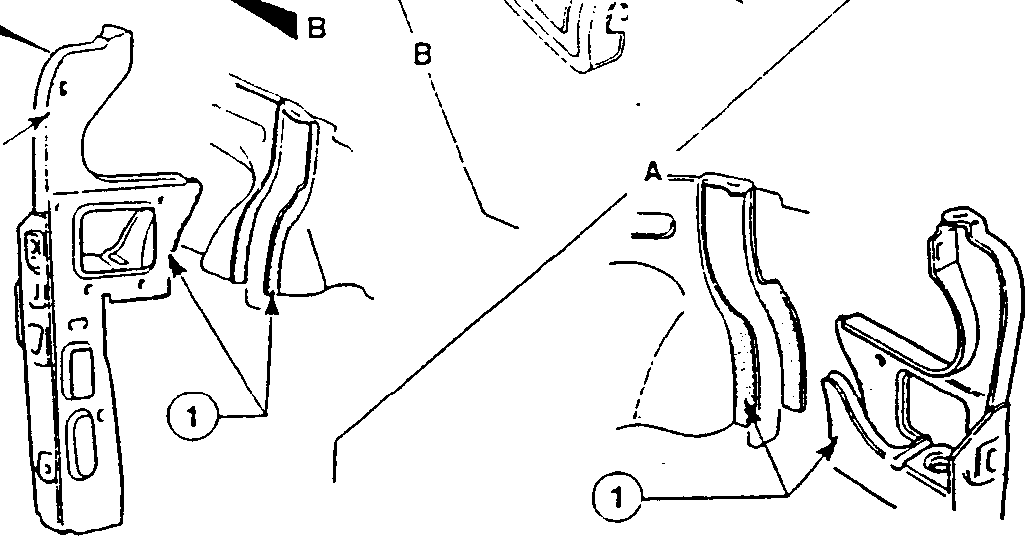

Illustration showing areas to be cleaned with Type A electroweldable protection, marked as F1, F3, and labeled parts 1, A, B.
  1. Spread the areas indicated in the illustration with Type A electroweldable protection.
Illustrates removal/installation of car door handle assembly
Icons showing a spot welder and a rotating brush for cleaning welding areas.

Welding position and finishing of sheet metal

  • Position the new part, secure the components, check alignment and mate the edges.

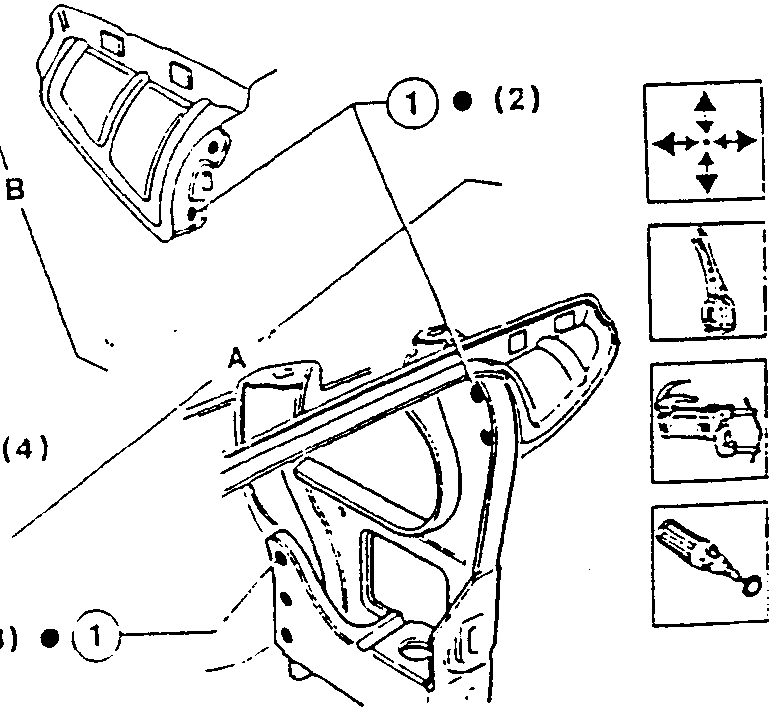

Illustration showing spot welding positions marked as (1), (2), (3), (4) with a spot welder icon and directional arrows.
  1. Using a spot welder, operate as shown in the illustration.
  • Using a rotating brush clean the welding areas.

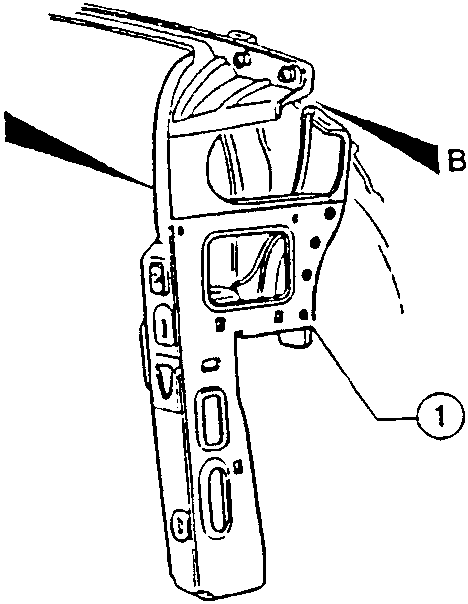

Illustration showing a new part positioned with alignment marks A and B, labeled part 1.
