Positioning
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Welding and finishing of the sheet metal › Positioning
BodyworkPositioning · page 1 of 2
Positioning

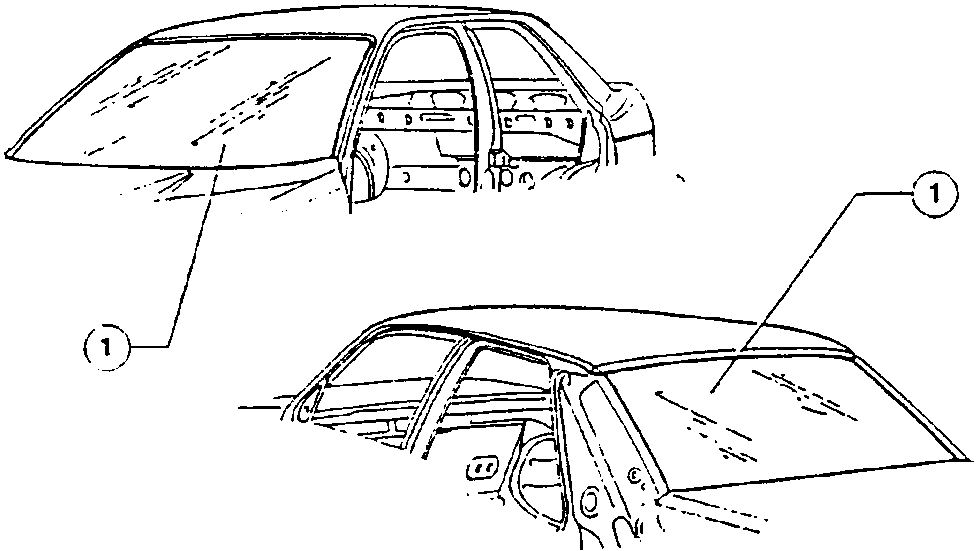

- Correctly position the roof panel on the vehicle and using the front and rear windshields as a guide, check the alignment of the glass housings.
- Secure the components to be welded, mate the edges and check the alignment.
Welding and finishing of the sheet metal

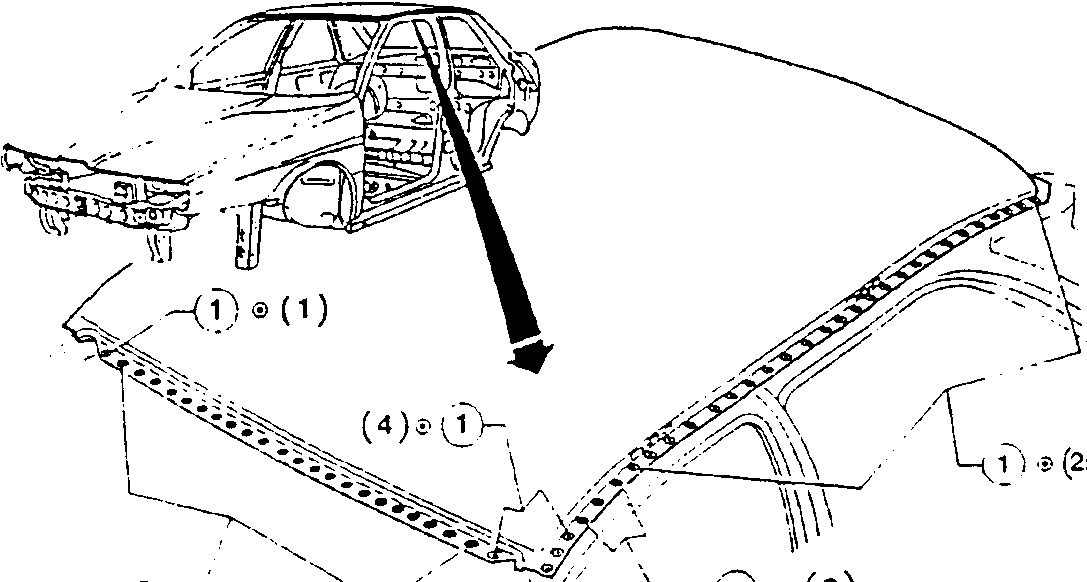

- Using a spot welder operate along the perimeter of the roof panel as indicated in the illustration.
- Using an abrasive grind wheel, remove and level the residues left by welding.
- Using a rotating brush, clean the welded areas.
