Positioning (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Welding and finishing of the sheet metal
BodyworkPositioning · page 2 of 2

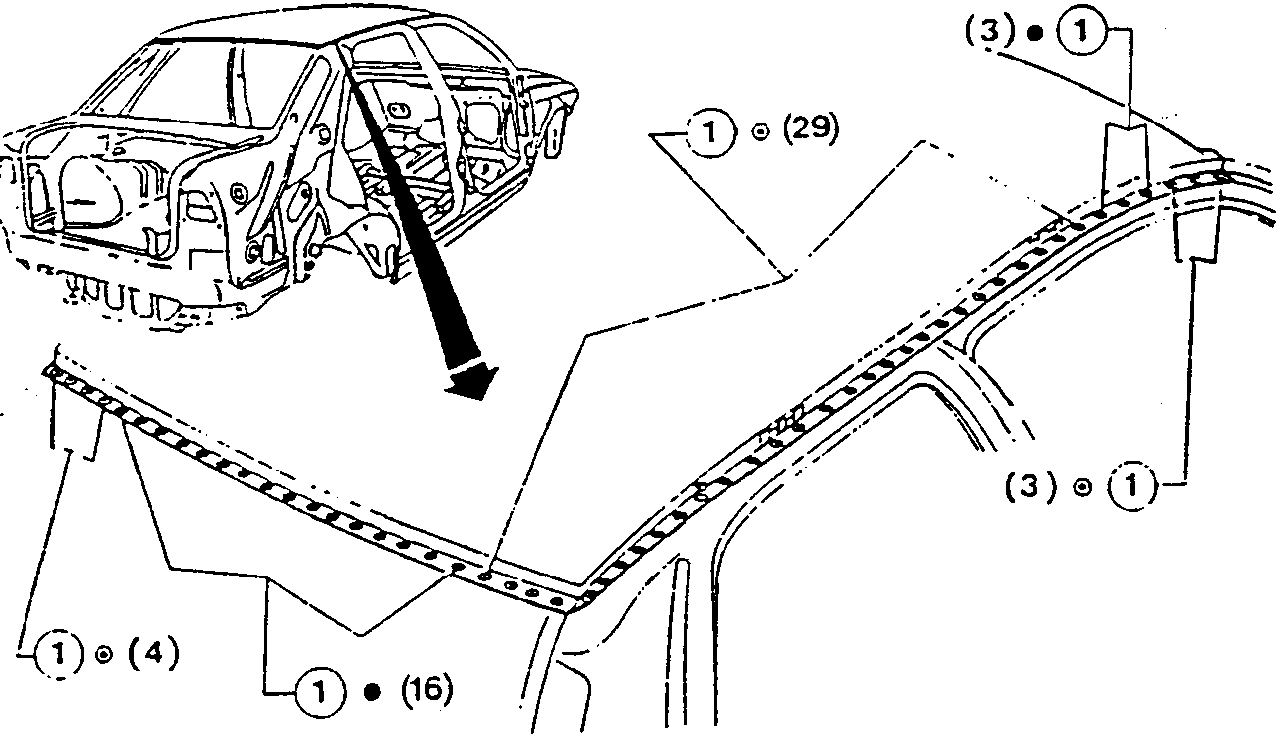

- Using a spot welder operate on the edge of the roof panel as shown in the illustration.

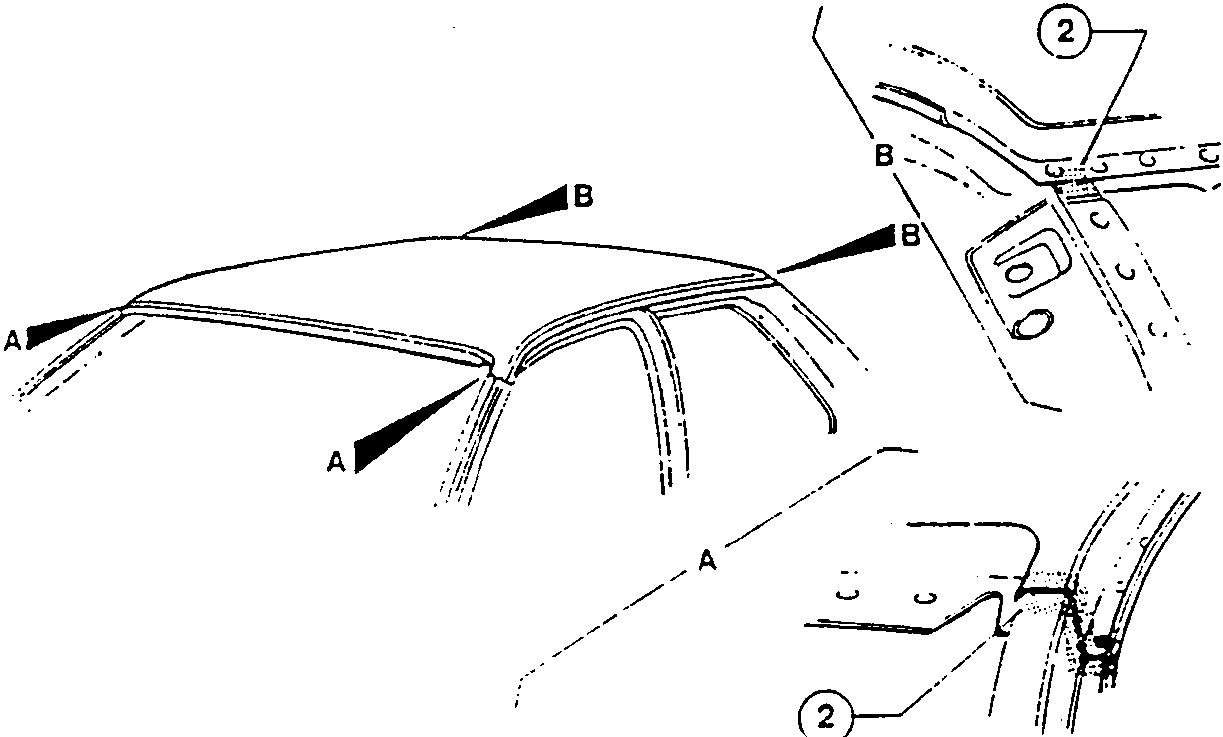

- Using braze welding, attach the four corners of the roof panel to the pillars as shown in the illustration.
– Using an abrasive grinding wheel remove and smooth the welding residues.
– Using a rotating brush clean the welding areas.
Welding and finishing of the sheet metal (continued)
