Welding and finishing the metal sheet
BodyworkPositioning · page 2 of 2
  1. Carry out filling welding using a MIG welder.
  2. Operating inside the vehicle, carry out filling welding using a MIG welder.

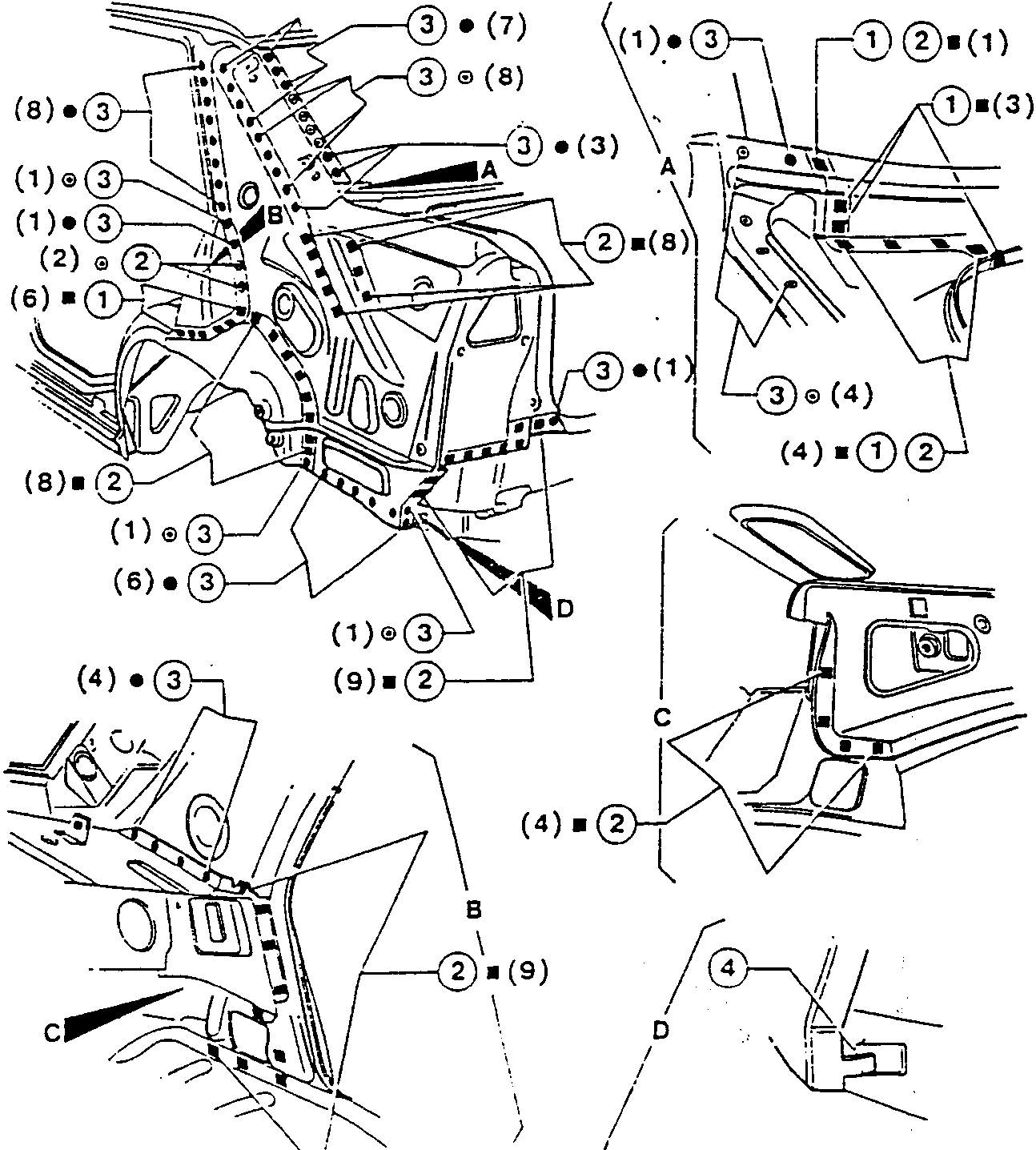

  3. Using a spot welder, operate as indicated in the illustration.
Diagram showing various welding points and components labeled with numbers (1) through (9), including areas marked A, B, C, D. The diagram illustrates welding operations on a vehicle's bodywork, with callouts indicating specific weld types or locations. On the right side, there are four small inset diagrams labeled F2, depicting different tools: a grinding wheel, a rotating brush, and two other unspecified tools.
  1. Bend the clinch tab.
  2. Using an abrasive grinding wheel, remove and level the residues left by welding.
  3. Clean the welding areas with a rotating brush.
