Alfa Romeo 155 Factory Service Manual (1992-1998)62 · Boot and bonnet
62 · General

Removal and installation

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Bonnet safety lock › Removal and installation
Boot and bonnetRemoval and installation

REMOVAL AND INSTALLATION

  • Disconnect the negative cables (-) from the battery.
  • Open the bonnet.
  1. Unscrew the safety locking device retaining screws.
  2. Remove the safety locking device by unhooking it from the bonnet.

Install by reversing the removal procedure.

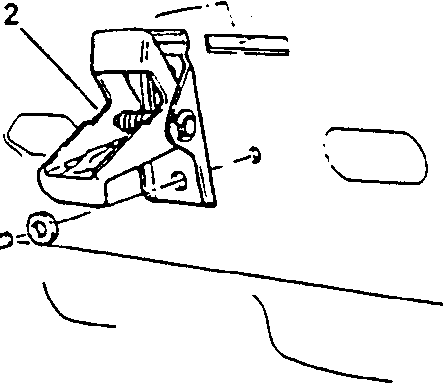

Bonnet safety lock diagram showing screw and device

7.1 ÷ 9 Nm
(0.72 ÷ 0.92 kgm)
