Removal and installation

REMOVAL AND INSTALLATION

NOTE: Avoid damaging the paintwork during removal or installation.

• Disconnect the negative cable (-) from the battery.

CAUTION: Support the boot lid properly to prevent it falling onto the operators during removal.

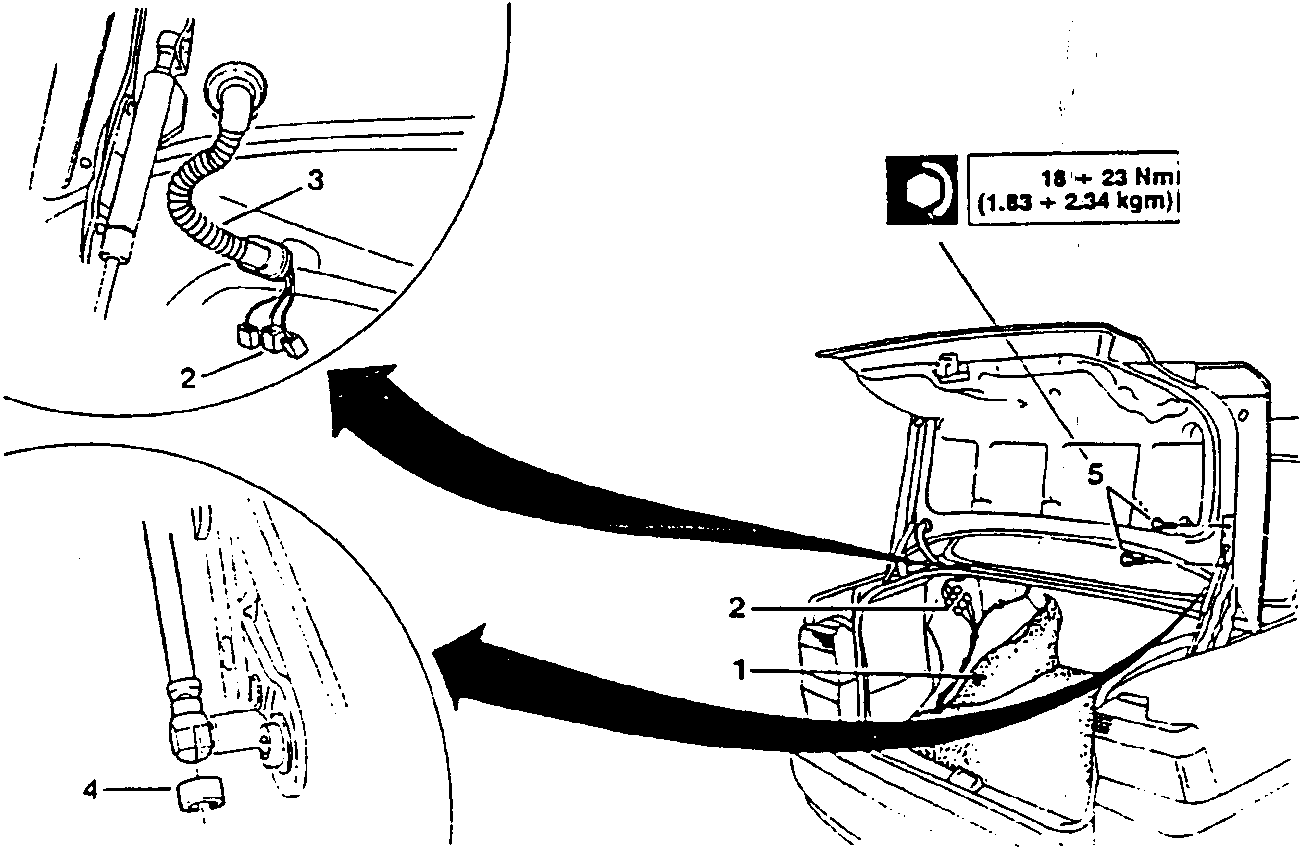

1. Remove the luggage compartment trim from the left side in order to again access to the boot wiring connectors.
2. Disconnect the boot wiring connectors.

3. Withdraw the rubber bellows from the vehicle side.
4. Withdraw the safety stop from the boot lid shock absorber from the vehicle side and disconnect the shock absorber from its seating.
5. Unscrew the four bolts securing the hinges to the boot lid and remove the lid.

Install by reversing the removal procedure.

• Before tightening the hinge bolts adjust the position of the boot lid (see: GR. 49 - REPLACEMENT OF MOBILE COMPONENTS - BOOT).
• Before connecting the connectors, check that the cables are correctly inserted in them.

1. Part 1
2. Part 2
3. Part 3
4. Part 4
5. Part 5

18 ÷ 23 Nm
(1.83 ÷ 2.34 kgm)
