Removal and installation

REMOVAL AND INSTALLATION

• Disconnect the negative cable (-) from the battery.
• Remove the luggage compartment trim (see: GR. 66 - LUGGAGE COMPARTMENT TRIM).

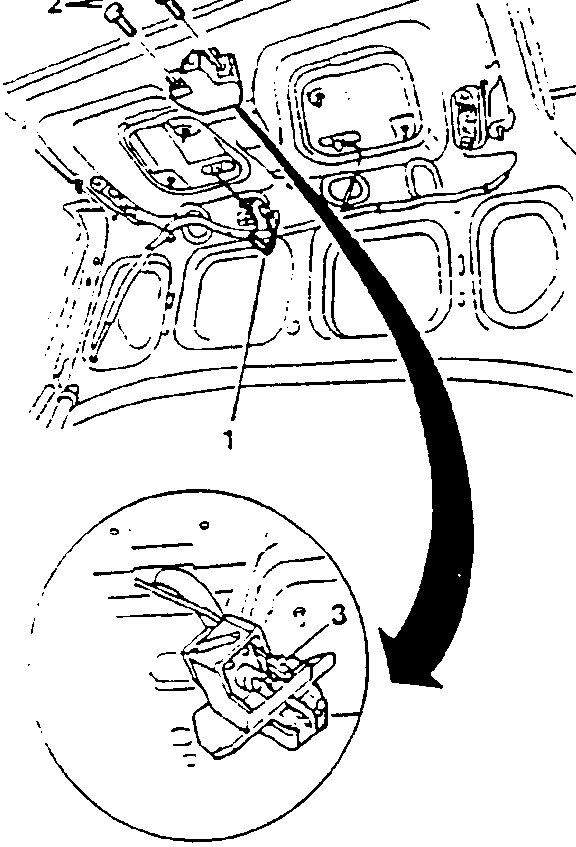

1. Disconnect the two boot release and Check Panel connectors.
2. Unscrew the locking device retaining bolts and remove the device from the boot lid.
3. Using a screwdriver, disconnect the tie-rod from the lock block and remove the device.

19 ÷ 25 Nm
1.94 ÷ 2.55 kgm

Install by reversing the removal procedure.

• For installation of components and/or parts dealt with in other pages of this or other groups, refer to the relative procedures and warnings.
• Before connecting the electrical connectors check that the electric cables have been correctly inserted into them.

BOOT LOCK CATCH

REMOVAL AND INSTALLATION

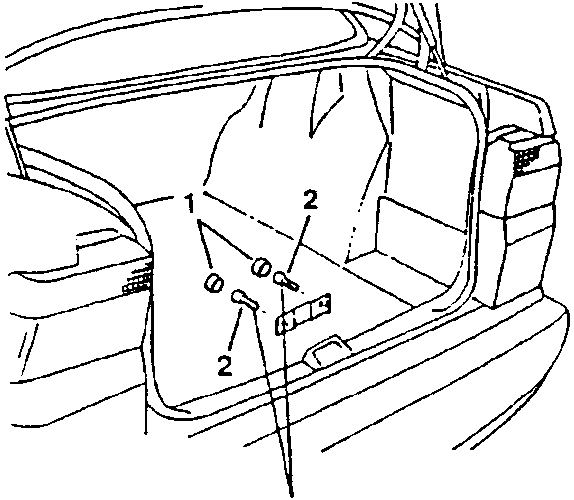

1. Remove the catch retaining screw covers.
2. Unscrew the two screws securing the catch to the body.

7.1 ÷ 9 Nm
0.72 ÷ 0.92 kgm

Install by reversing the removal procedure.

• Before definitively tightening the catch retaining screws adjust as indicated below.

CATCH ADJUSTMENT

• Correctly position the catch and tighten the retaining screws.
• Check that the boot lid opens correctly and repeat the operation if necessary.
