Removal and installation

REMOVAL AND INSTALLATION

• Disconnect the negative cable (-) from the battery.
• Remove the luggage compartment trim (see: GR. 66 - LUGGAGE COMPARTMENT TRIM).
• Working from inside the boot unhook the tie-rod securing the lock block to the boot lid release device (on the lock side).

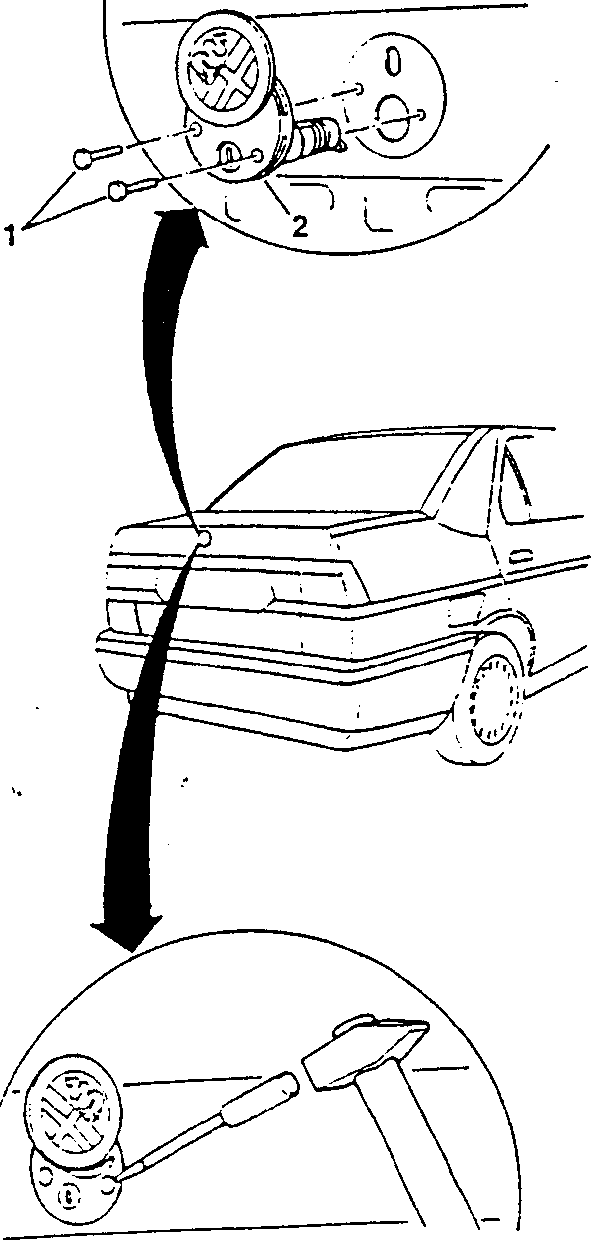

1. Using a suitable punch, unscrew the two self-cutting screws securing the lock to the boot lid.
2. Remove the lock block.

Install by reversing the removal procedure.

• For installation of components and/or parts dealt with in other pages of this or other groups, refer to the relative procedures and warnings.
