Brake pedal

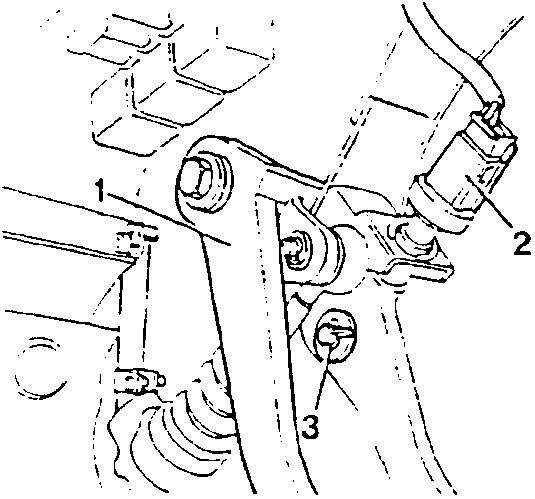

BRAKE PEDAL

REMOVAL AND REFITTING

1. Remove the clutch pedal (see: GR. 12 - CLUTCH - REMOVAL AND REFITTING OF CLUTCH PEDAL).
2. Disconnect the wiring from the stoplight switch.
3. Withdraw the pin connecting the brake pedal to the brake pump control fork and remove the pedal.

Refit by reversing the procedure followed for removal and referring to GR. 12 - REMOVAL AND REFITTING CLUTCH PEDAL.

1. Part name
2. Part name
3. Part name

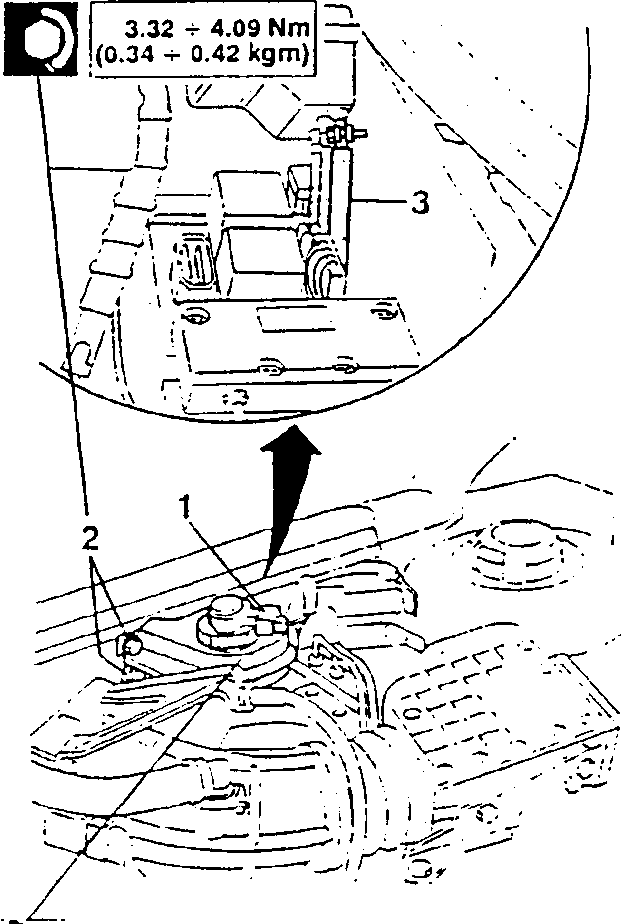

CLUTCH-BRAKE FLUID RESERVOIR

REMOVAL AND REFITTING

• Empty the clutch-brake fluid reservoir using a syringe.

1. Disconnect the connector of the low fluid level indicator.
2. Loosen the two screws securing the reservoir.
3. Disconnect the two brake pump delivery hoses and remove the reservoir.

Refit by reversing the procedure followed for removal and:

• tighten the screws securing the tank to the correct torque;
• bleed the air from the braking system (see: AIR BLEED);
• after bleeding restore the brake-clutch fluid to the correct level in the reservoir.

3.32 ÷ 4.09 Nm
(0.34 ÷ 0.42 kgm)
