CHIEKS AND INSPECTIONS

• Check that the servo brake is working correctly.

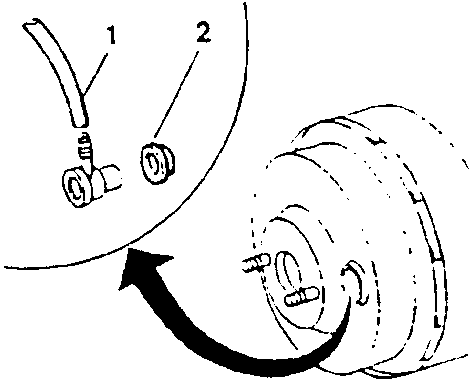

1. Check the hoses for damage.
2. Check that the check valve is working correctly.

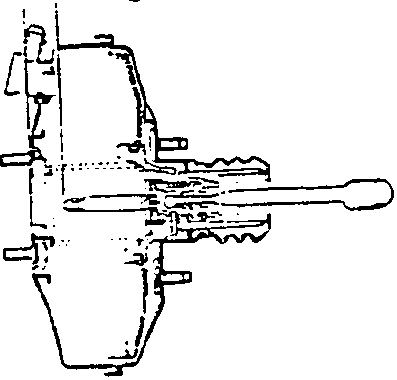

3. Check that the setting of the servo brake is correct. In the rest position the tip of the adjustment screw must be below the level of the surface of the cover and at the value given in the section: TECHNICAL CHARACTERISTICS AND SPECIFICATIONS.

1. Part 1
2. Part 2
3. Part 3

FRONT BRAKES

REMOVAL AND REFITTING

• Remove the wheel from the appropriate side.

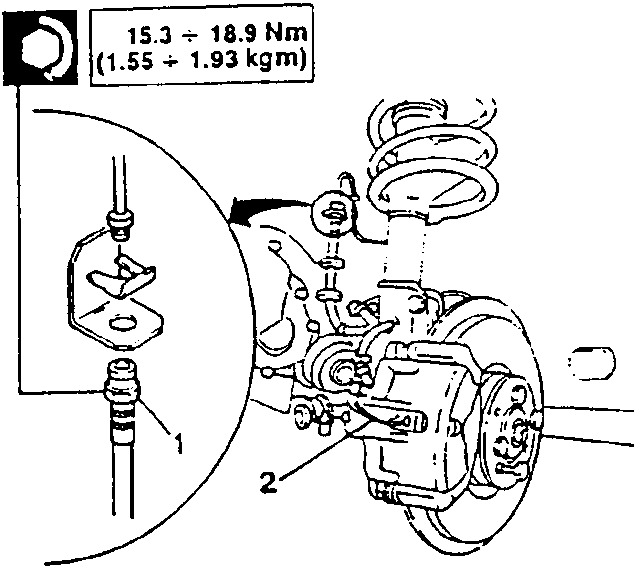

1. Disconnect the connection and hose from the side panel.
2. Disconnect the brake pad wear sensor wiring connector.

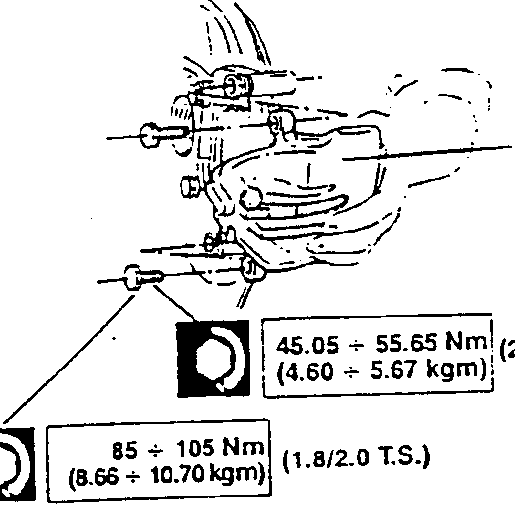

3. Remove the two screws and remove the brake caliper.

15.3 ÷ 18.9 Nm
(1.55 ÷ 1.93 kgm)

45.05 ÷ 55.65 Nm
(4.60 ÷ 5.67 kgm)

85 ÷ 105 Nm
(8.66 ÷ 10.70 kgm)

WARNING:

• When refitting, substitute the screws securing the brake caliper body.
• When refitting check that the rubber boots protecting the threads of the retaining pins are not damaged. If they are, replace them.
