Removal and refitting (page 3 of 3)

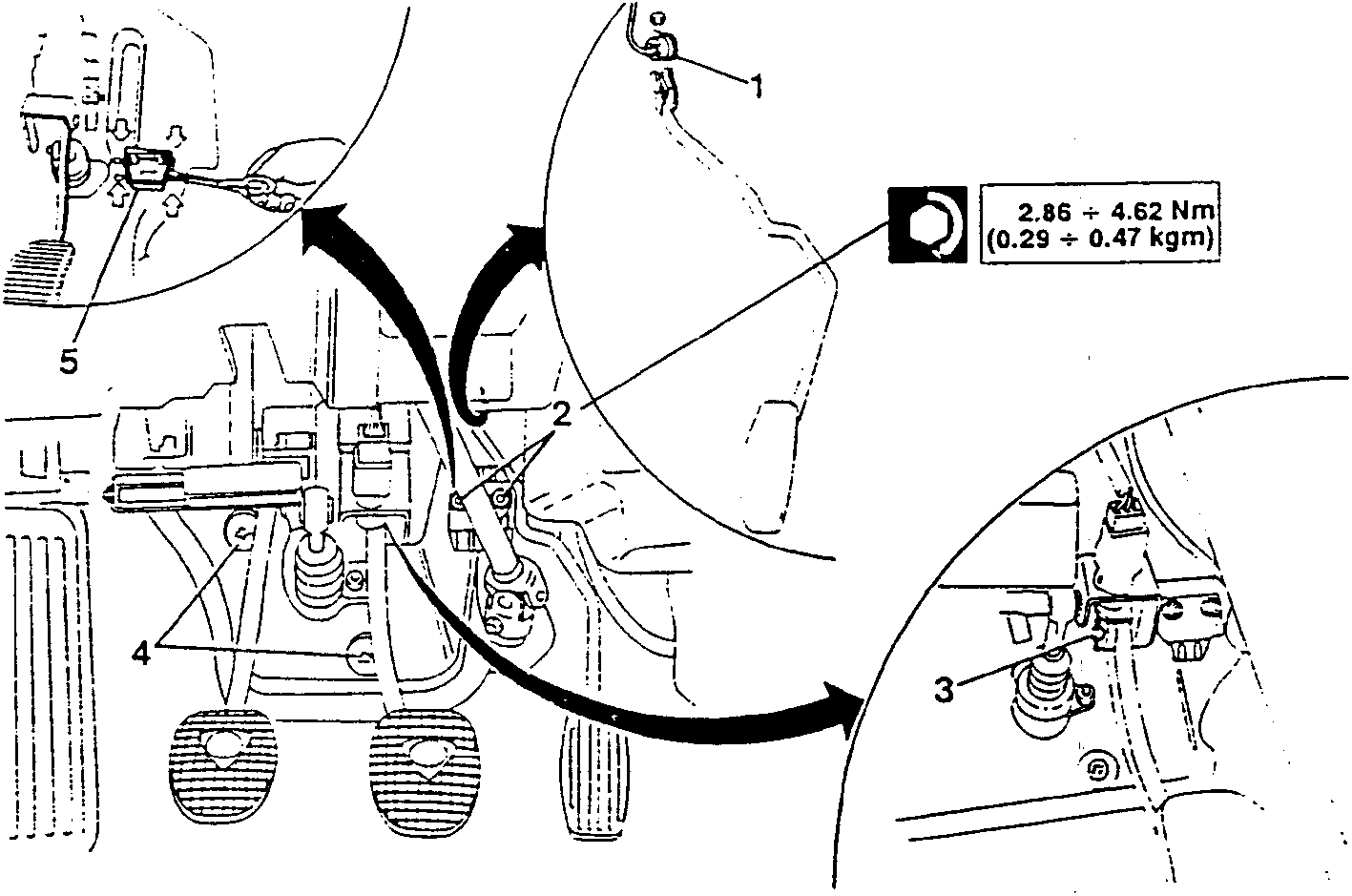

Operating from inside the passenger compartment, proceed as follows.

1. Free the accelerator cable from the accelerator pedal.
2. Loosen the two screws and remove the accelerator pedal.

1. Withdraw the cotter pin from the servo brake pin connecting plug and brake pedal. Remove the plug.
2. Remove the buttons securing the soundproofing plate.
3. Cut the soundproofing plate at the points indicated by the arrows in the diagram and remove the plate.

2.86 ÷ 4.62 Nm
(0.29 ÷ 0.47 kgm)

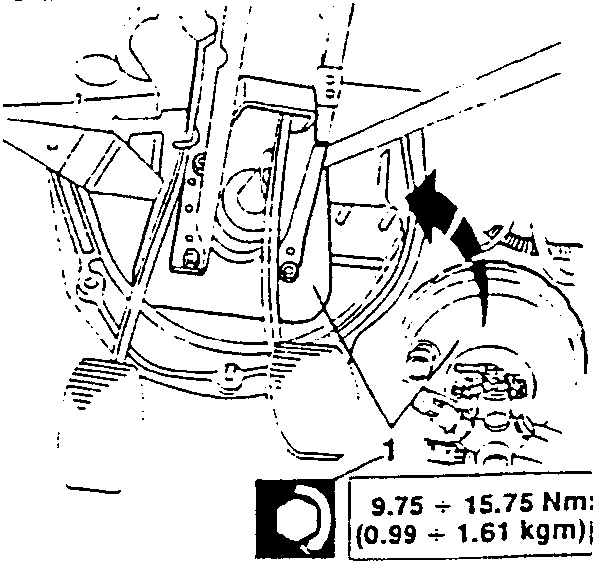

1. Unscrew the four nuts securing the servo brake to the body and remove it from the engine compartment.

9.75 ÷ 15.75 Nm
(0.99 ÷ 1.61 kgm)

Refit by reversing the procedure followed for removal and:

• tighten the retaining screws and nuts to the specified torques;
• bleed the air from the braking system (see: AIR BLEED);
• after bleeding restore the brake-clutch fluid to the correct level in the reservoir.
