Removal and refitting (page 2 of 3)

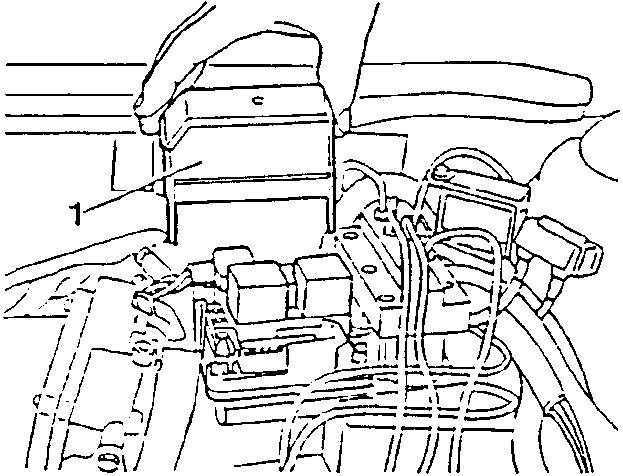

1. Loosen the screw securing the cover of the electronic control unit and remove the four-pin connector.

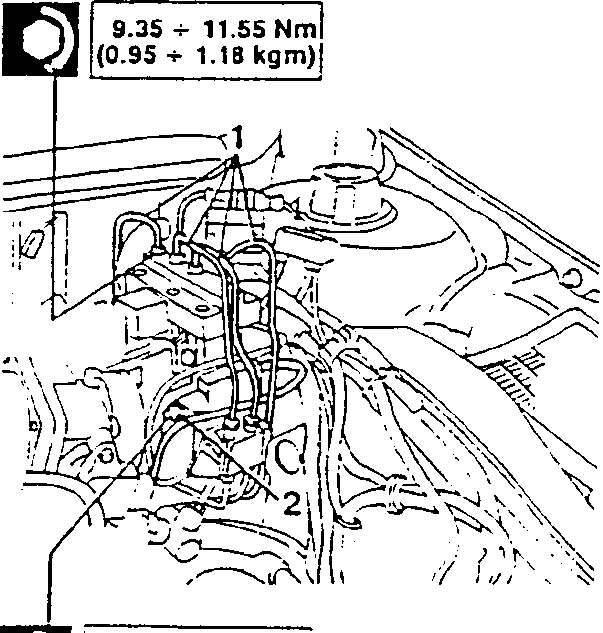

1. Disconnect the hydraulic unions from the ABS hydraulic unit and from the four-way distributor.
2. Loosen the three screws securing the hydraulic unit to the support and remove the support.

9.35 ÷ 11.55 Nm
0.95 ÷ 1.18 kgm

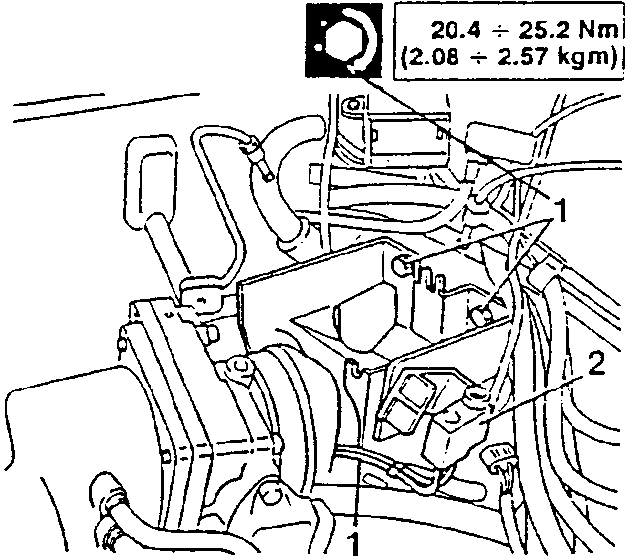

1. Loosen the three screws securing the ABS hydraulic unit support to the body.
2. Free the four-way distributor from its seating on the ABS hydraulic unit support and remove the support.

20.4 ÷ 25.2 Nm
2.08 ÷ 2.57 kgm

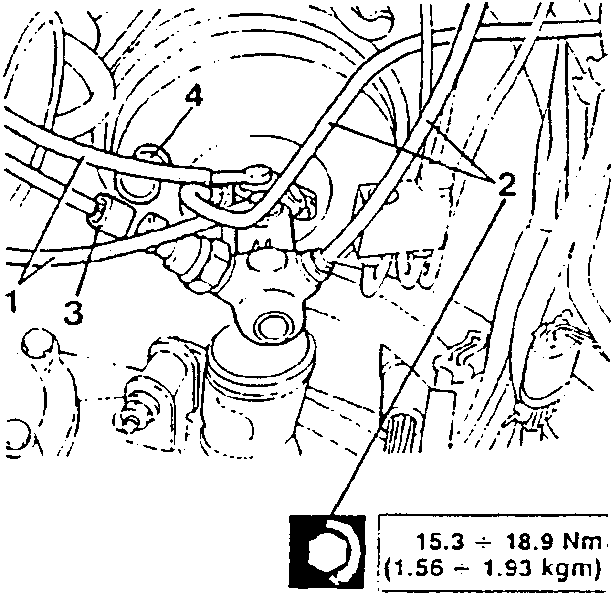

1. Disconnect the supply hoses from the brake pump.
2. Remove the delivery pipes from the brake pump.
3. Only for models equipped with controlled damping suspension - disconnect the braking sensor wiring.
4. Remove the servo brake vacuum intake hose.

15.3 ÷ 18.9 Nm
1.56 ÷ 1.93 kgm
