Checks and inspections (page 2 of 2)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Checks and inspections

ClutchChecks and inspections · page 2 of 2

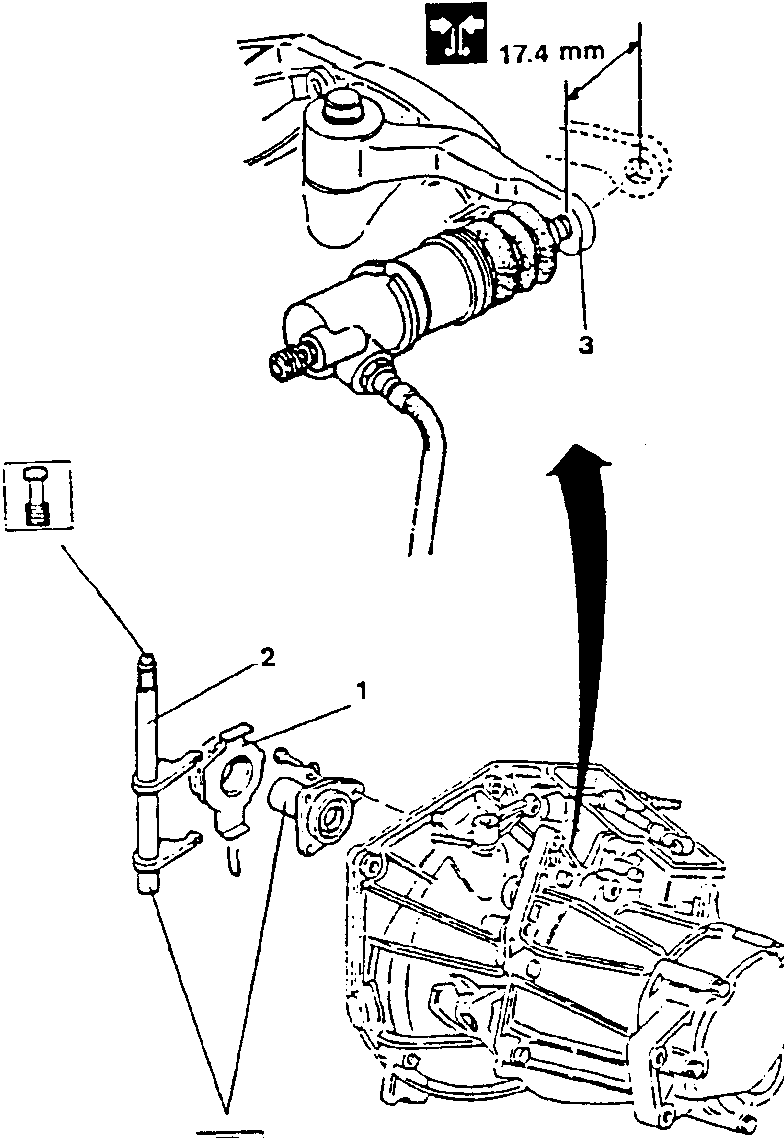

1. Check the thrust bearing for noise, excessive play and freedom of movement in the sheath.
2. Check the fork for cracks, deformation, freedom of movement and excessive wear of the working surfaces.
3. Check that the disengagement stroke of the clutch control lever is 17.4 mm; if the stroke is below this figure, check the efficiency of the hydraulic circuit.

1. Component 1
2. Component 2
3. Component 3

50 Transmission
