Removal and refitting

REMOVAL AND REFITTING

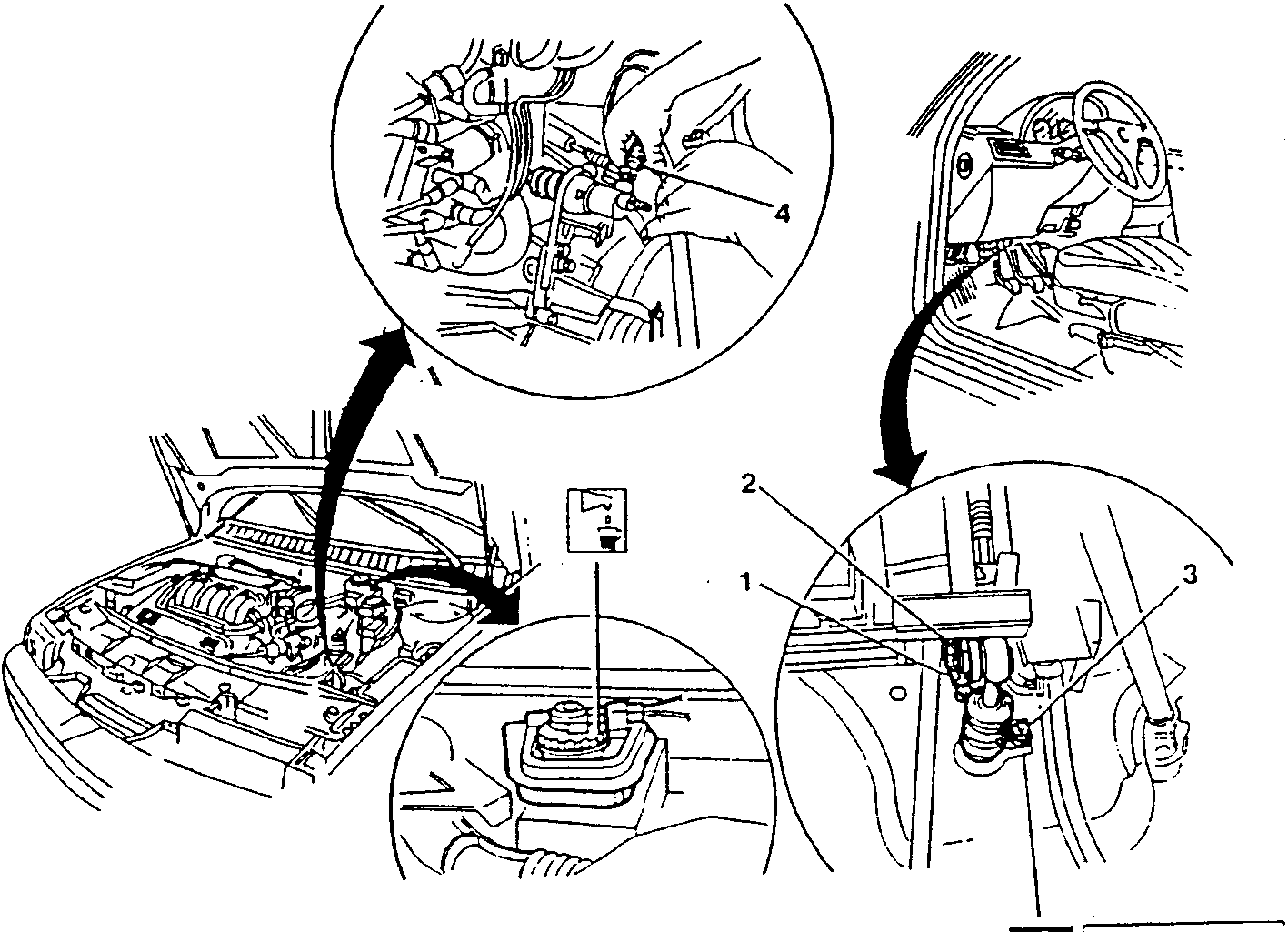

Using a suitable tool clamp the oil delivery hose to prevent excessive oil spillage during removal.

1. Disconnect the oil delivery hose from the pump.
2. Remove the safety clip and withdraw the pin connecting the pump to the clutch pedal.
3. Loosen the nut securing the pump to the body.

• Working in the engine compartment, proceed as follows:

4. Disconnect the flexible hose from the clutch control cylinder.

• Working from inside the vehicle, withdraw the pump together with the flexible hose carrying the oil to the cylinder.

Refit by reversing the procedure followed for removal and tightening the screw securing the clutch pump to the body to the correct torque.

When refitting the pump bleed air from the system (see: BLEEDING THE HYDRAULIC SYSTEM).

1. part name
2. part name
3. part name
4. part name

13 ÷ 21 Nm
(1.33 ÷ 2.14 kgm)
