DoorsRemoval and refitting · page 2 of 2

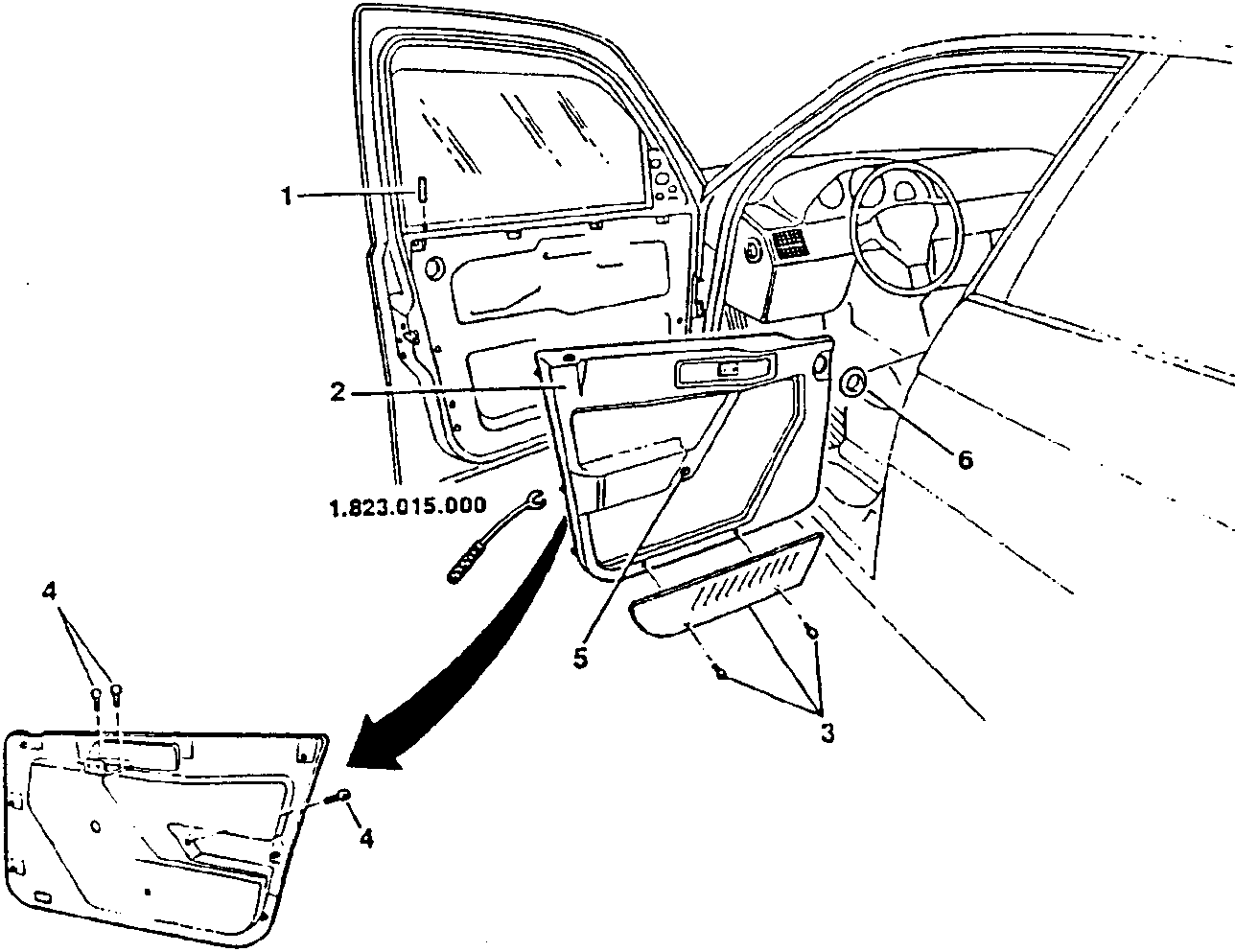

1. Loosen and remove the safety lock pin.
2. Using tool No. 1.823.015.000, pull off the eight plastic buttons securing the panel to the door and remove the panel to a bench.
3. Loosen the two screws securing the door panel pouch to the panel and remove the pouch.
4. From the inside of the panel, loosen the two upper screws and the lower screw securing the handle to the panel.
5. Remove the handle.

6. Remove the gasket from the side defroster air vent. Refit by reversing the procedure followed for removal and observe the following:
   • Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.
   • Before refitting the panel check that the plastic buttons are not damaged.
