Removal and refitting

REMOVAL AND REFITTING

1. Loosen the two Allen screws and remove the catch.

To refit, reverse the procedure followed for removal and observe the following:

• Install the new catch and insert the screws without tightening them.
• Move the catch up and down until the door closes correctly.
• After adjusting the lock catch and tighten the retaining screws to the correct torque.

17 ÷ 22 Nm
(1.73 ÷ 2.24 kgm)

PANEL

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.

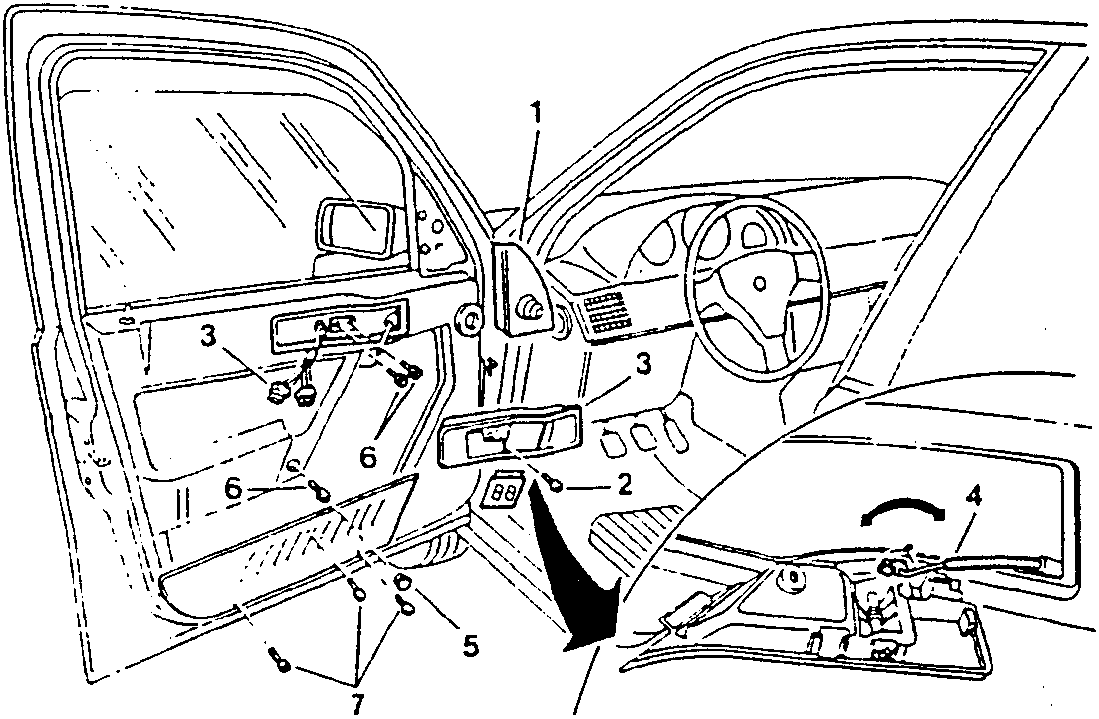

1. Pull off the triangle protecting the door mirror control.
2. Loosen the screw securing the door opening lever support moulding.

3. Pull the moulding away from the panel and disconnect the connections from the power window control button.
4. Rotate the clip of the door opening rod and disconnect the rod from the lever.
5. Pull off the protective cap located below the handle.
6. Loosen the two screws located in the door opening control lever compartment and the central screw securing the panel.
7. Loosen the three lower screws of the door panel pouch.
