Adjustment

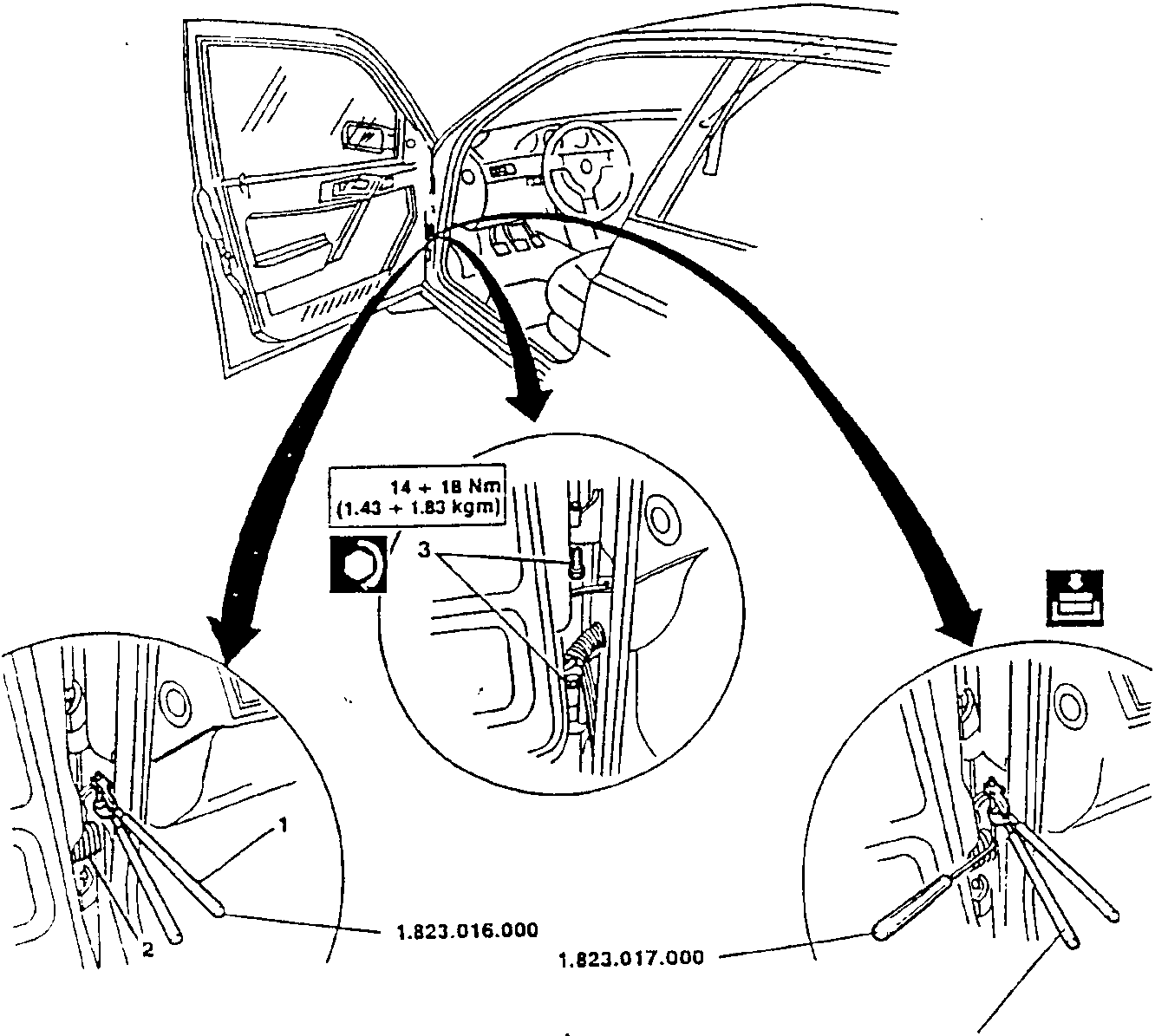

1. Using tool No. 1.823.016.000 withdraw the pin from the door check-strap, close the door slightly to allow entry of the door check-strap, and reopen the door.
2. Pull off the sleeve protecting the cables and withdraw the cables from the front door pillar.
3. Loosen the screws securing door hinges and lift the door until the tapered pins can be removed from the hinges. Remove the door.

To refit, reverse the procedure followed for removal and observe the following:

• Centre the pin of the door check-strap using tool No. 1.823.017.000 coupled with tool No. 1.823.016.000.
• Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.
• Tighten the retaining screws to the correct torque.

14 ÷ 18 Nm
(1.43 ÷ 1.83 kgm)

ADJUSTMENT

• To adjust the doors see: GR. 49 - REPLACING MOBILE COMPONENTS - FRONT DOORS.
