Removal and refitting

REMOVAL AND REFITTING

NOTE: When removing (or refitting) avoid damaging the paintwork.

• Disconnect the negative (-) cable from the battery.
• If operating on the door on the driver’s side, remove the trim under the dashboard (see: GR. 66 - DASHBOARD).

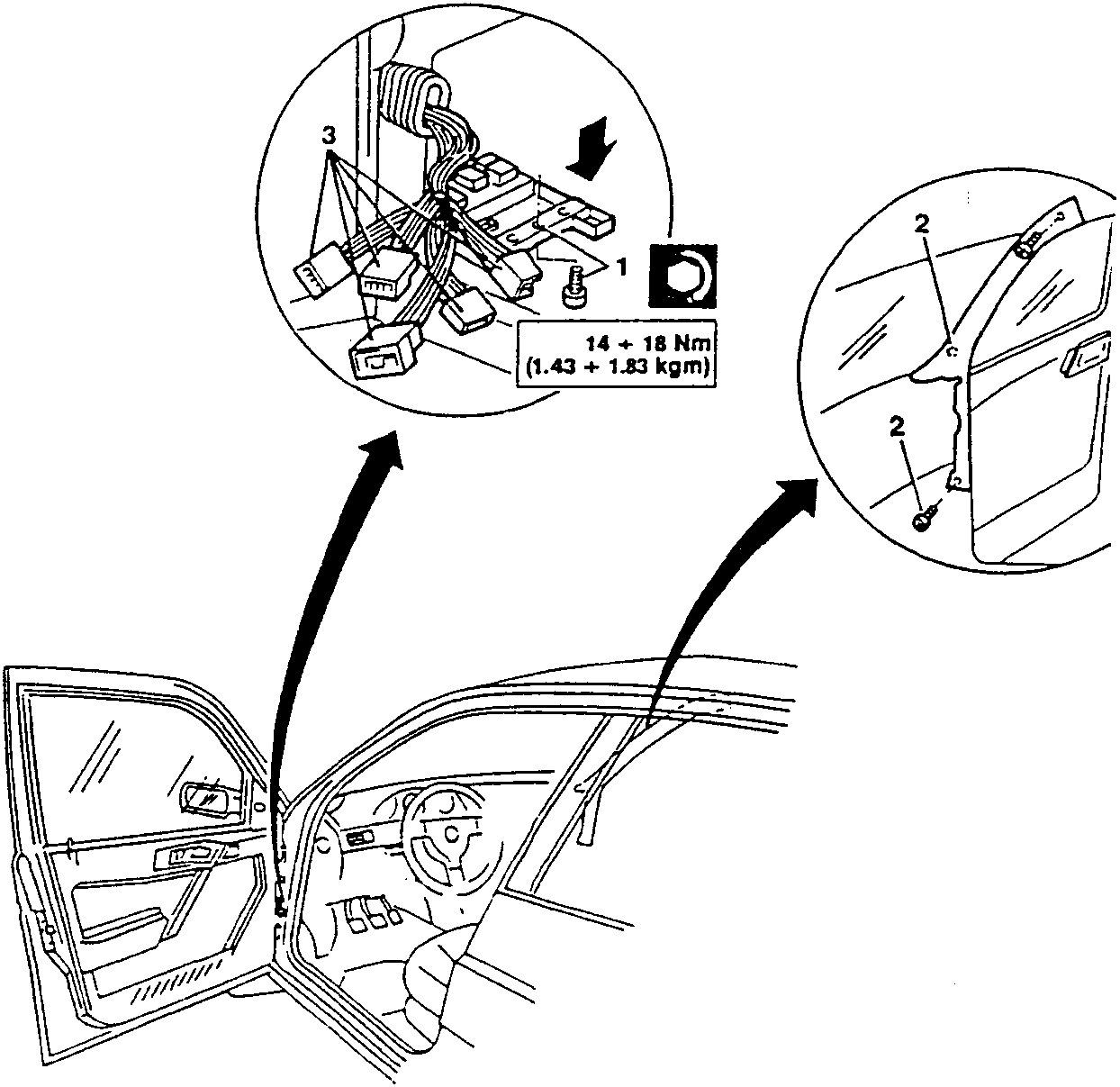

1. If operating on the door on the driver’s side, loosen the screw securing the valve box and lower the front part.
2. If operating on the door on the passenger side, loosen the lower screw and disconnect the button securing the front pillar covering to the pillar.
3. Disconnect the power supply connectors of the door electrical services.

14 ÷ 18 Nm
(1.43 ÷ 1.83 kgm)
