Removal and refitting

REMOVAL AND REFITTING

1. Loosen the two Allen screws and remove the catch.

17 ÷ 22 Nm
(1.73 ÷ 2.24 kgm)

To refit, reverse the procedure followed for removal and observe the following:

• Install the new catch by inserting but not tightening the screws.
• Move the catch up and down until the door closes correctly.
• After adjustment lock the catch and tighten the retaining screws to the correct torque.

PANEL

(vehicles without power windows)

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.

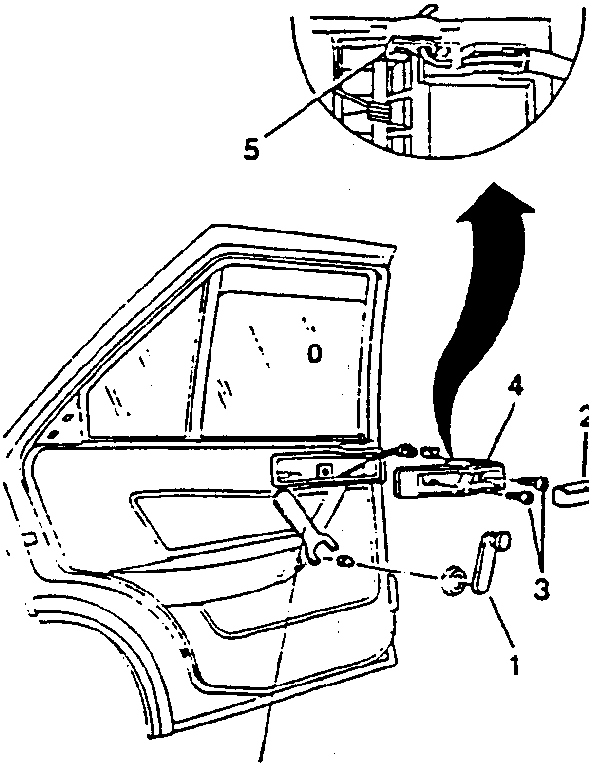

1. Remove the handle from the window raising mechanism by pulling off the safety clip using tool No. 1.823.014.000.
2. Remove the ashtray from the seating on the door opening control lever support moulding.
3. Loosen the two screws securing the door opening control lever support moulding to the frame.
4. Detach the moulding from the panel and disconnect the connector from the ashtray light.
5. Rotate the clip on the door opening rod and disconnect the rod from the lever.

1.823.014.000
