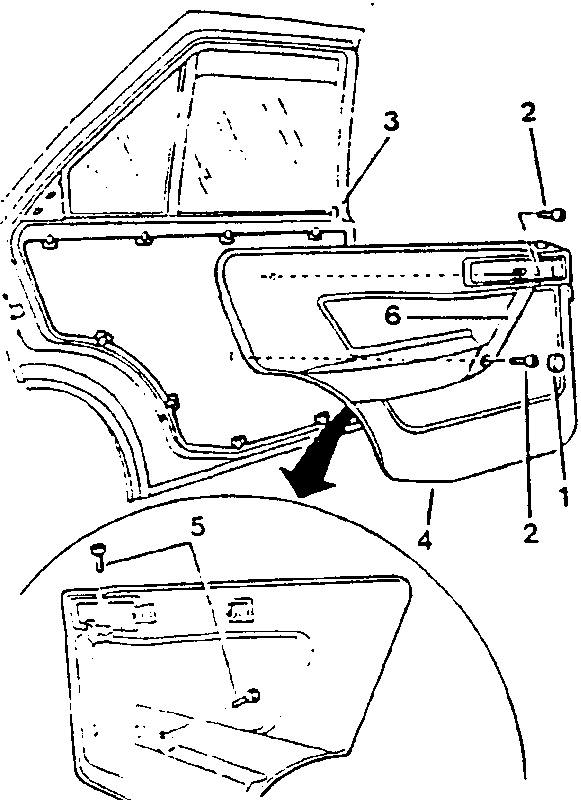

PANEL (vehicles with power windows)

1. Pull off the the protective cap located below the handle.
2. Loosen the screw located door opening control lever and compartment and the central screw securing the panel.
3. Loosen and remove the the cover from the safety lock pin.
4. Using tool No. 1.823.015.000, pull off the nine plastic buttons securing the panel to the door, remove the panel and take to a bench.
5. From the inside loosen the upper screw and the lower screw securing the handle to the panel.
6. Remove the handle.

PANEL (vehicles with power windows)

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.

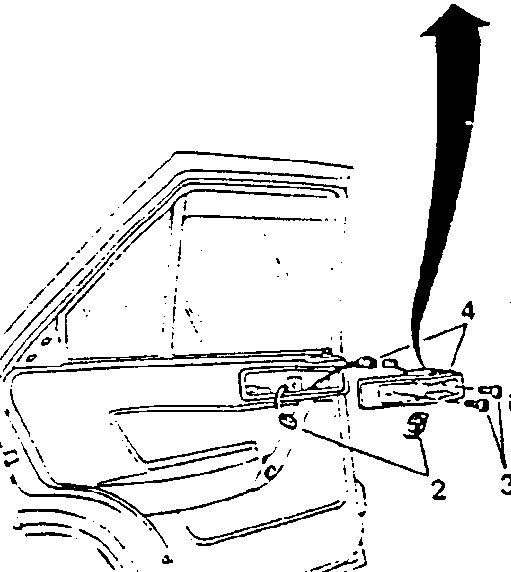

1. Remove the ashtray from its seating in the door opening control lever support moulding.
2. Pull off the window raising control button moulding and disconnect the connector.
3. Loosen the two screws securing the door opening control lever support moulding to the frame.
4. Detach the moulding from the panel and disconnect the connector from the ashtray light.
5. Rotate the clip of the door opening rod and disconnect the rod from the lever.

1. part name
2. part name
3. part name
4. part name
5. part name
6. part name

To refit, reverse the procedure followed for removal and observe the following:

• Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.
• Before refitting the panel, check that the buttons are not damaged.
