Removal and refitting

REMOVAL AND REFITTING

NOTE: When removing (or refitting) avoid damaging the paintwork.

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL) and remove the cellophane from one side.

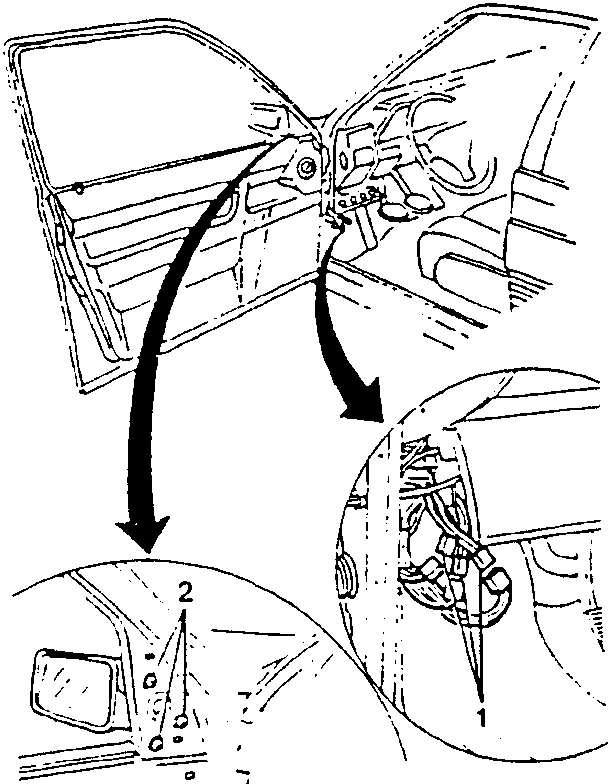

1. Working from inside the vehicle disconnect the connectors from the devices installed in the mirror (direction, heating, temperature sensor for models equipped with air conditioning).
2. Withdraw the cables from the mirror devices acting from inside the door frame.
3. Loosen the three screws and remove the mirror.

To refit, reverse the procedure followed for removal and observe the following:

• Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.

WINDOW SEALS

REMOVAL AND REFITTING

• Lower the door window.
• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL).
• Remove the door window (see: WINDOWS).

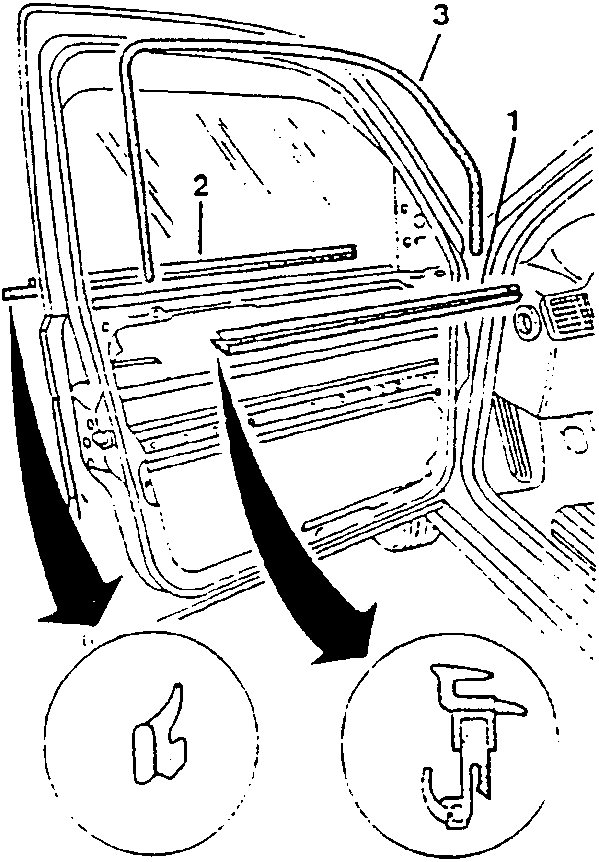

1. Remove the inner window seal.
2. Remove the outer window seal.
3. Loosen the door mirror attachment.
4. Withdraw and remove the surrounding velvet strip.

To refit, reverse the procedure followed for removal and observe the following:

• For the refitting of components dealt with in other pages of this or other groups, refer to the relevant procedures and advice (see: PANEL).
