Alfa Romeo 155 Factory Service Manual (1992-1998)61 · Doors
61 · Body & interior

Removal and refitting

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Lower door finishing strip › Removal and refitting
DoorsRemoval and refitting

REMOVAL AND REFITTING

  1. Using tool 1.823.015.000 disconnect the seven buttons securing the lower strip to the door.
  2. Remove the strip.

To refit, reverse the procedure followed for removal.

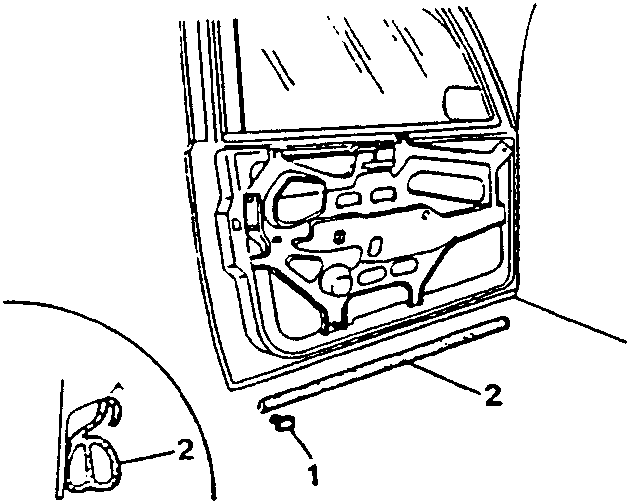

Diagram showing the lower door finishing strip with parts labeled 1 and 2.
  1. Part 1
  2. Part 2
