(vehicles without power windows)

(vehicles without power windows)

REMOVAL AND REFITTING

NOTE: When disassembling (or reassembling) avoid damaging the paintwork.

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL).
• Remove the door window (see: WINDOWS).

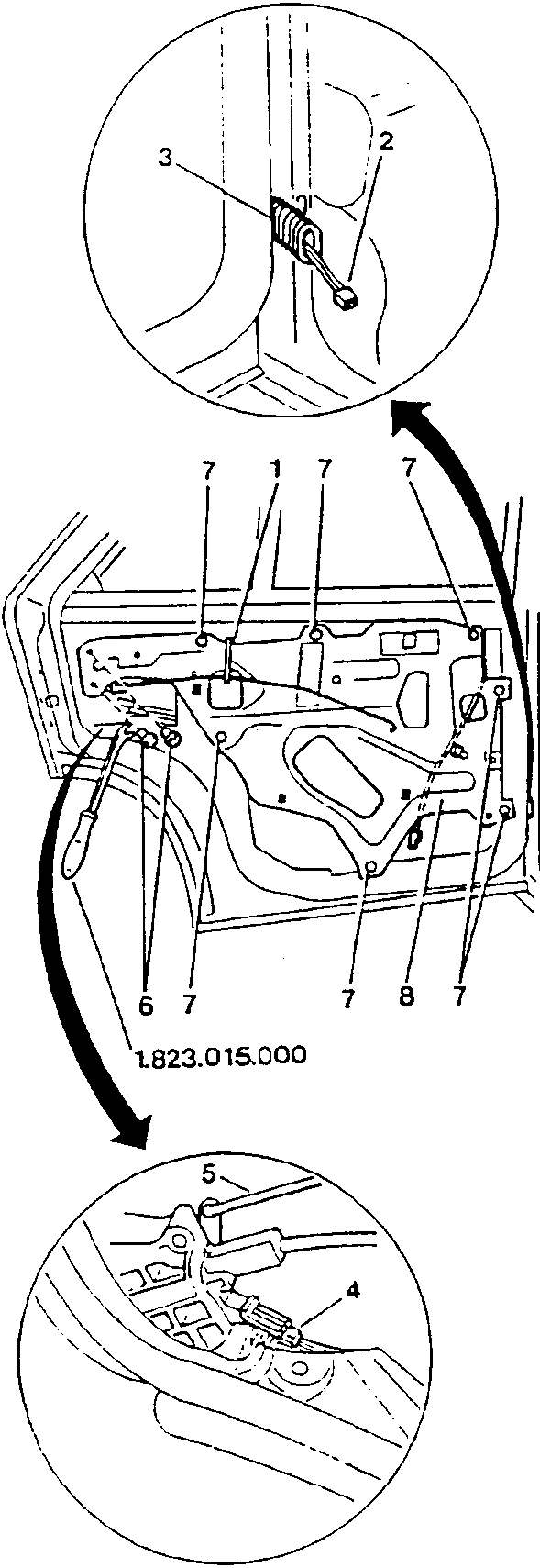

1. Cut the clamp securing the door opening cable to the frame.
2. Pull off the corrugated rubber hose, withdraw the wiring from the passage on the central pillar and disconnect them.
3. Remove the corrugated hose by withdrawing it from the wiring.
4. Disconnect the automatic door closure connector and the lock check.
5. Disconnect the rod connecting the door lock control to the lock device.
6. Using tool No. 1.823.015.000 disconnect the two plastic buttons securing the frame to the lock device.

NOTE: Cover the working area with adhesive tape to avoid damaging the paintwork.

1. Loosen the seven screws securing frame to the door.
2. Remove the frame, wiring and window raising device.

Refit by reversing the procedure followed for removal and observe the following:

• Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.
• Check the alignment of the frame and of the operating torque of the window raising device.

1.823.015.000
