Guide pad

GUIDE PAD

REMOVAL AND REFITTING

NOTE: The guide pad should only be replaced if it is broken.

• Wind the window half way down.
• Withdraw the door pillar seal.

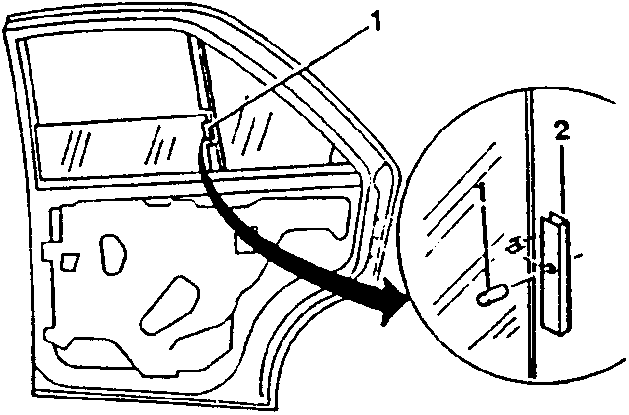

1. Using a punch withdraw the pin.
2. Remove the pad.

To refit, reverse the procedure followed for removal and observe the following:

• Position the new pad.
• Fix the pad to the glass using the same pin.
• Refit the glass in the door pillar seal.

WINDOW GUIDES

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.
• Wind the window up.
• Remove the door panel (see: PANEL) and the cellophane.

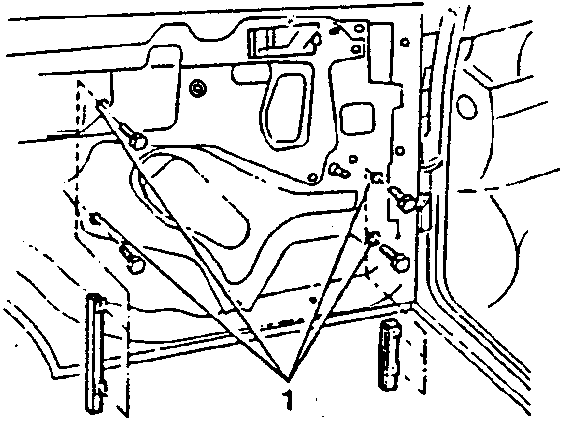

1. Loosen the four screws securing the window guides to the frame and remove the guides.

To refit, reverse the procedure followed for removal and observe the following:

• For the refitting of components dealt with in other pages of this or other groups, refer to the relevant procedures and advice (see: PANEL).
