Removal and refitting

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL).
• Remove the door frame (see: FRAME).
• Remove the lock device (see: LOCK DEVICE).

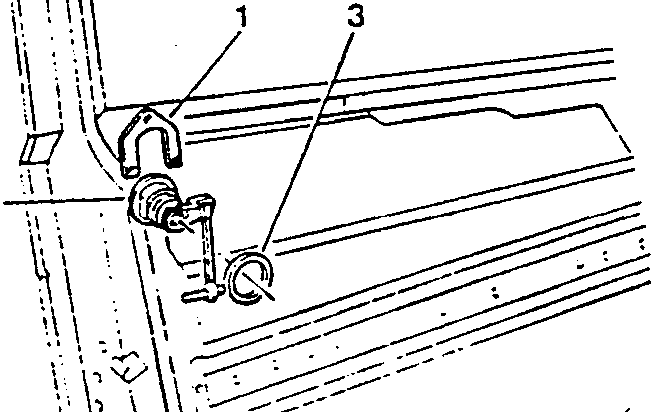

1. Using a screwdriver as a lever withdraw the clip securing the lock unit.
2. Remove the lock unit from the outside.
3. Remove the the ring-nut from the clip from the inside.

To refit, reverse the procedure followed for removal and observe the following:

• When refitting hold the unit in position using adhesive tape on the outside of the vehicle.
• For the refitting of components dealt with in other pages of this or other groups, refer to the relevant procedures and advice (see: PANEL; FRAME; LOCK DEVICE).
