Checking frame alignment

CHECKING FRAME ALIGNMENT

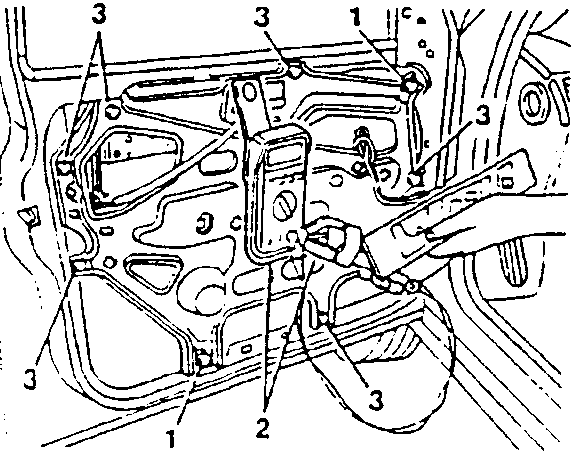

1. Install the frame on the door, complete with window raising device and fix it temporarily with the two nuts as shown.
2. Check the torque necessary for the operation of the window by connecting the clip of an ammeter to the wiring of the power window motor. Check that the intensity of current does not exceed 8 A and that the time necessary to raise the window does not exceed six/seven seconds. If there is excessive resistance (high power absorption, or raising times too long) check the alignment between window and guide and move the frame as necessary. Check that the seals are intact and correctly positioned and check the adjustment of the frame until the correct current value is obtained.
3. Fix the frame to the door and tighten the seven screws.

1. Part 1
2. Part 2
3. Part 3

LOCK DEVICE

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL) and detach the cellophane.
• Remove the door frame (see: FRAME).

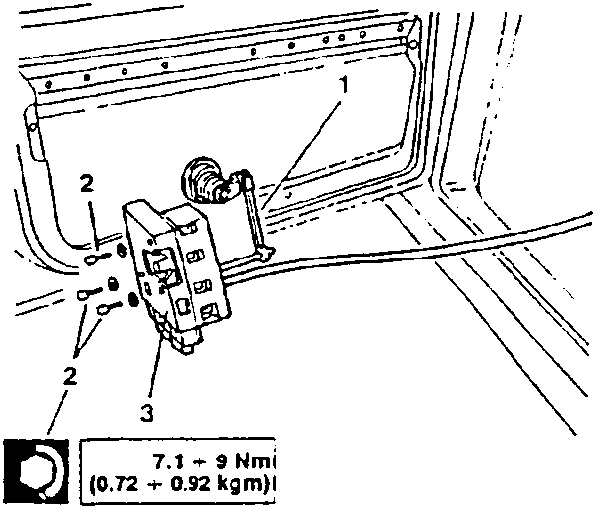

1. Disconnect the lock unit rod from the lock device.
2. Loosen the three screws securing the lock device to the door and remove them along with their washers.
3. Remove the lock device and rod.

7.1 ÷ 9 Nm
(0.72 ÷ 0.92 kgm)

To refit, reverse the procedure followed for removal and observe the following:

• Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.
• For the refitting of components dealt with in other pages of this or other groups, refer to the relevant procedures and advice (see: PANEL; FRAME).
• After refitting, if necessary, adjust the lock device catch on the door pillar (see: DOOR CATCH).
• Tighten the retaining screws to the correct torque.
