Removal and refitting (page 3 of 3)

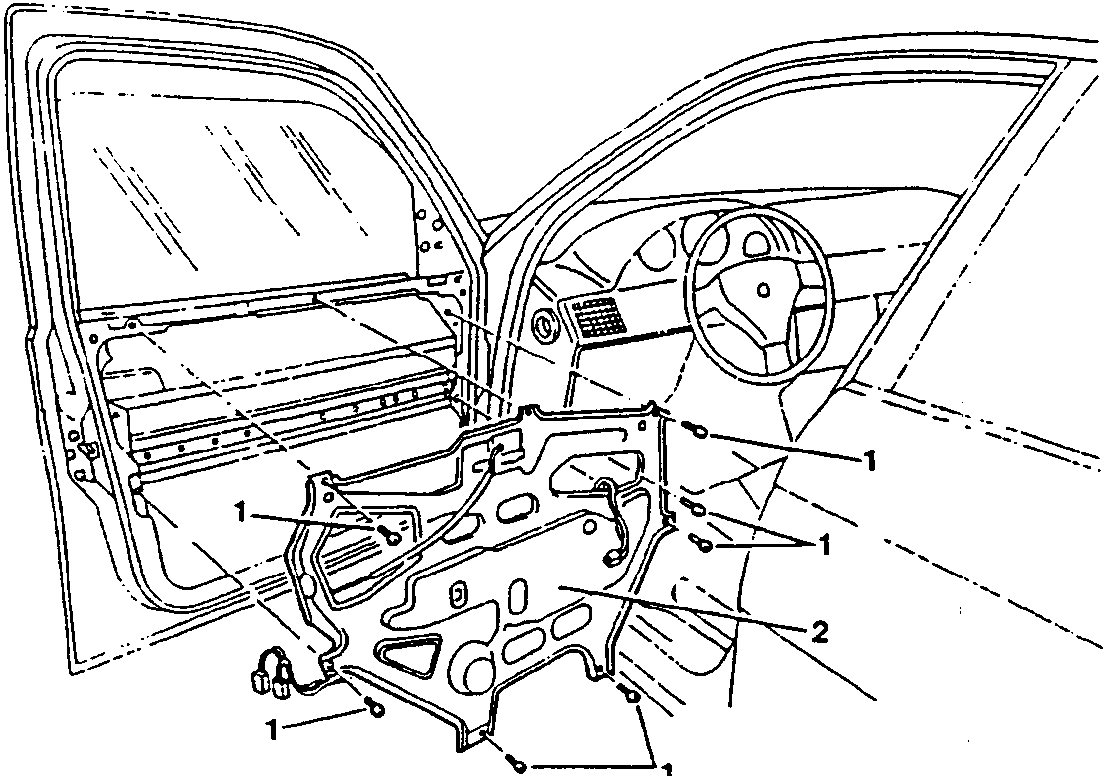

1. Loosen the seven screws securing the frame to the door.
2. Remove the frame and separate it from the window raising device.

To refit, reverse the procedure followed for removal and observe the following:

• Before connecting the electrical connectors, check that the electrical cables have been correctly installed in them.
• Check the alignment of the frame and the operating torque of the window raising device.
• After refitting the front guide, momentarily connect the battery and raise the window pushing it evenly against the rear seal/guide.

Before continuing the refitting operation check the operation of the window raising device and ensure that the glass moves smoothly.

For the refitting of components dealt with in other pages of this or other groups refer to the relative advice and procedures (see: PANEL; WINDOWS).
