Removal and refitting (page 2 of 3)

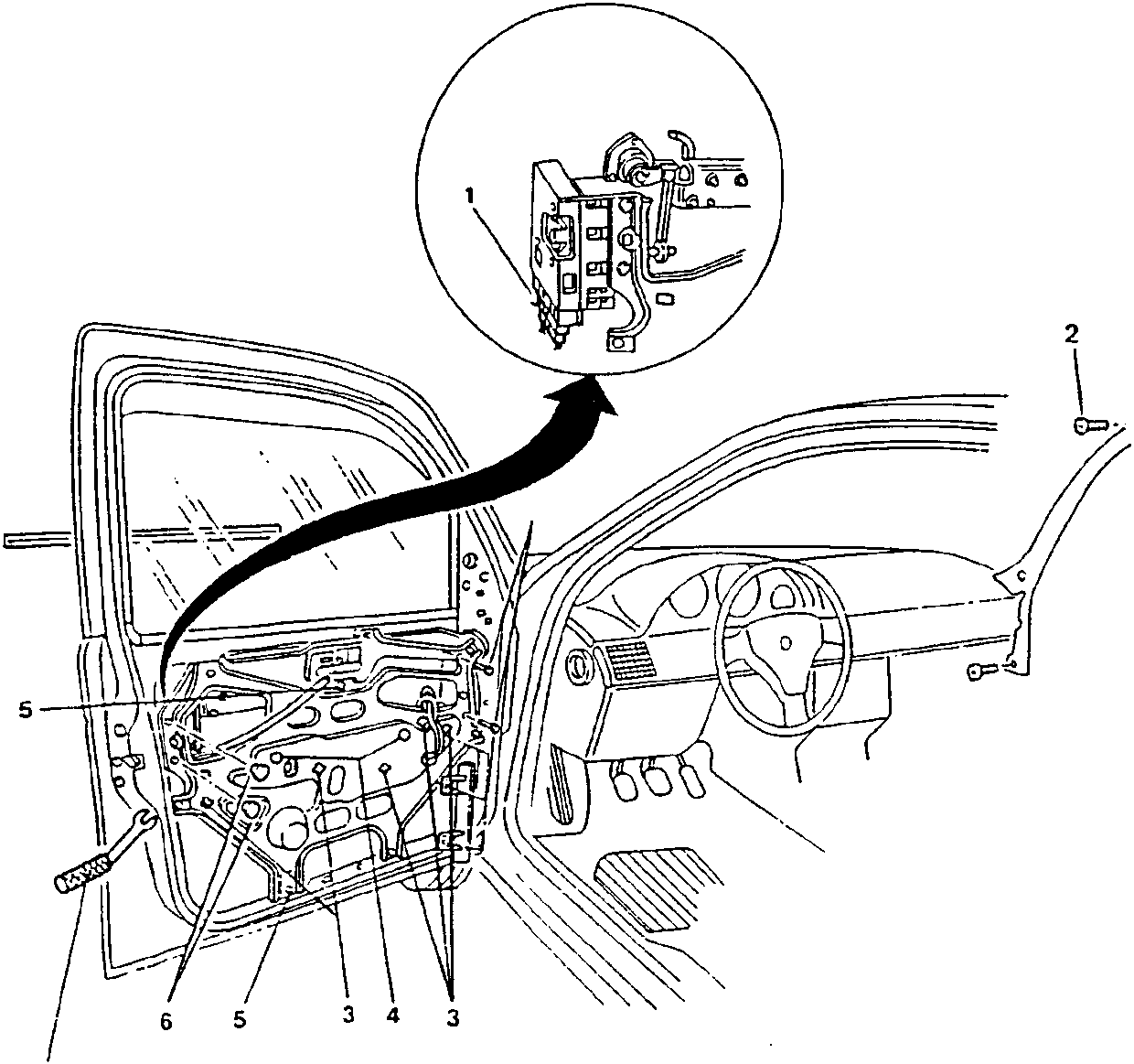

1. Disconnect the automatic door closure connectors and of those of the lock check.
2. Loosen the two screws securing the front window guide and remove it.

NOTE: Even if the power window motor is not working the windows can still be raised and lowered. Only if it is not possible to reach the button fixing the window raising device to the window is it necessary to proceed as indicated at points 3. to 5.

1. Disconnect the five clips securing the wiring to the frame.
2. Disconnect the two clips securing the window raising device to the frame.
3. Loosen the two screws securing the window raising device to the frame.
4. Using tool No. 1.823.015.000 disconnect the two plastic buttons securing the frame to the lock device.

NOTE: Place adhesive tape around the operating area in order to avoid damaging the paintwork.
