Removal and refitting

REMOVAL AND REFITTING

NOTE: When disassembling (or reassembling) avoid damaging the paintwork.

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL) and the cellophone.
• Remove the door window (see: WINDOWS).

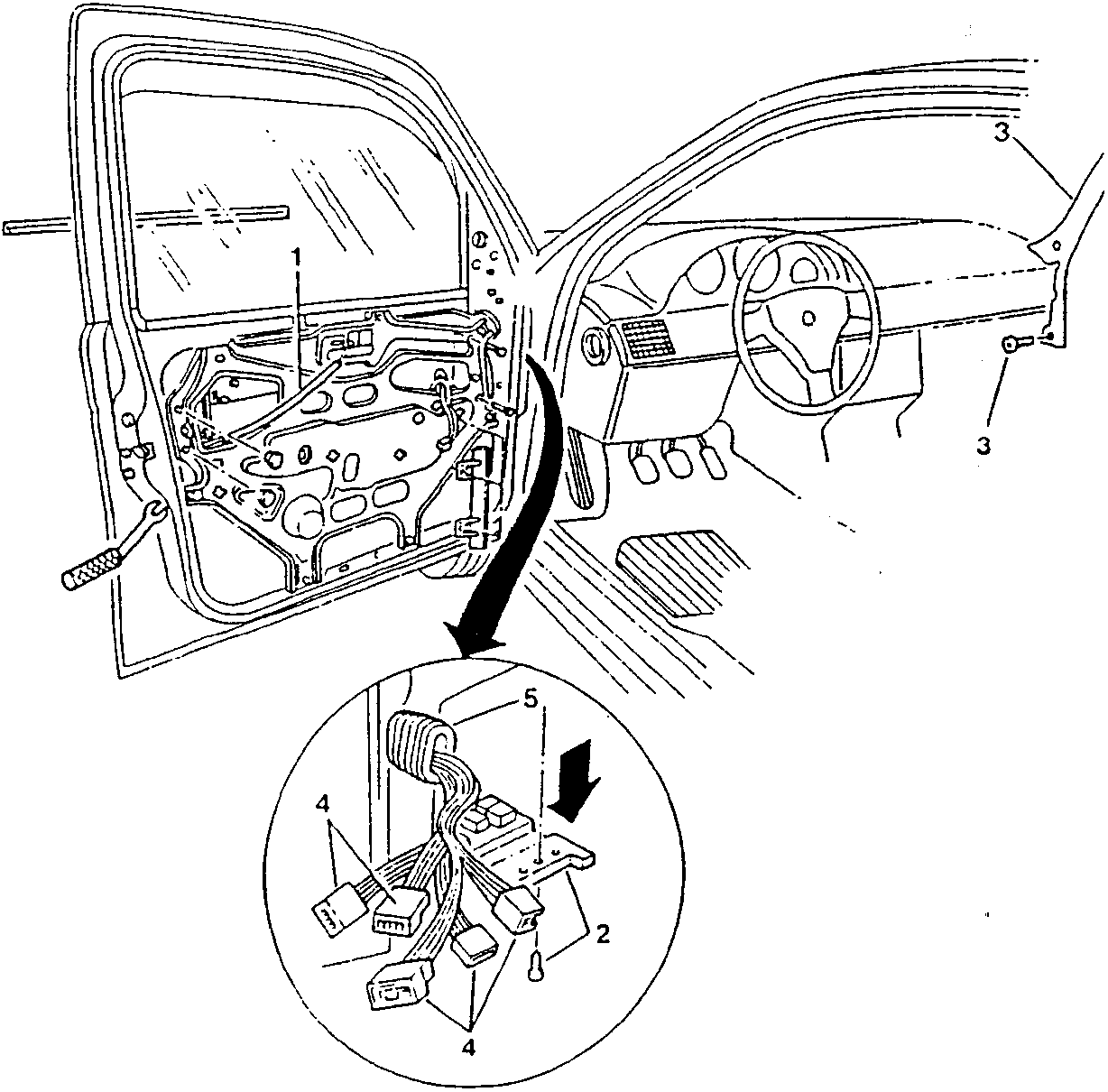

1. Cut the clamp securing the door opening cable to the frame.
2. If operating from the driver’s side, remove the trim under the dashboard, loosen the screw securing the valve box and lower it (see: GR. 66 - DASHBOARD).
3. If operating from the passenger side, loosen the lower screw and detach the plastic button securing the front pillar covering.
4. Disconnect the door services power supply wiring.
5. Pull off the corrugated rubber hose and withdraw the wiring from the opening on the front pillar.
6. If the vehicle is equipped with electric door mirrors, withdraw the relative wiring from the corrugated hose.

1. Part 2
2. Part 3
3. Part 4
4. Part 5
