Removal and refitting

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL).

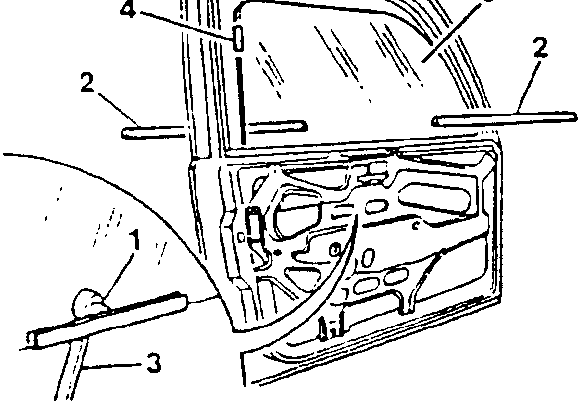

1. Momentarily connect the battery and position the glass so that the plastic button connecting the window to the window raising device can be reached.
2. Remove the inner and outer glass guides.
3. Using a number 11 fixed box spanner act on the tabs of the button and pull the glass off the pin.
4. Lower the glass so that the pad of the rear guide can be disconnected.
5. Pull the glass upwards and rotate it so that it can be removed.

To refit, reverse the procedure followed for removal and observe the following:

• For the refitting of components dealt with in other pages of this or other groups refer to the relative advice and procedures. (see: PANEL).

1. Part 1
2. Part 2
3. Part 3
4. Part 4
5. Part 5

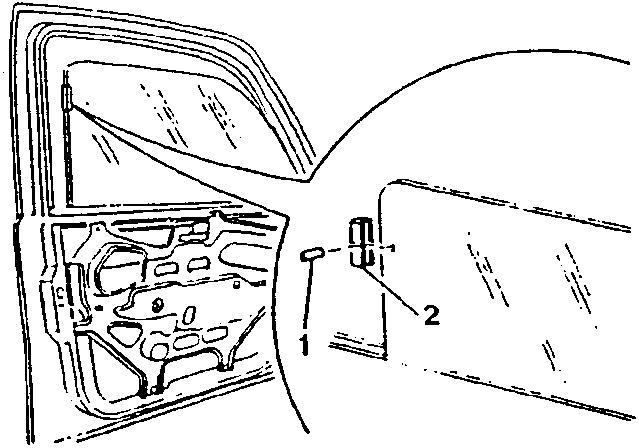

GUIDE PAD

REMOVAL AND REFITTING

NOTE: The guide pad should only be replaced if it is broken.

• Wind the window half way down.
• Withdraw the door pillar seal.

1. Using a punch withdraw the pin.
2. Remove the pad.

To refit, reverse the procedure followed for removal and observe the following:

• Position the new pad.
• Fix the pad to the glass using the same pin.
• Refit the glass in the door pillar seal.
